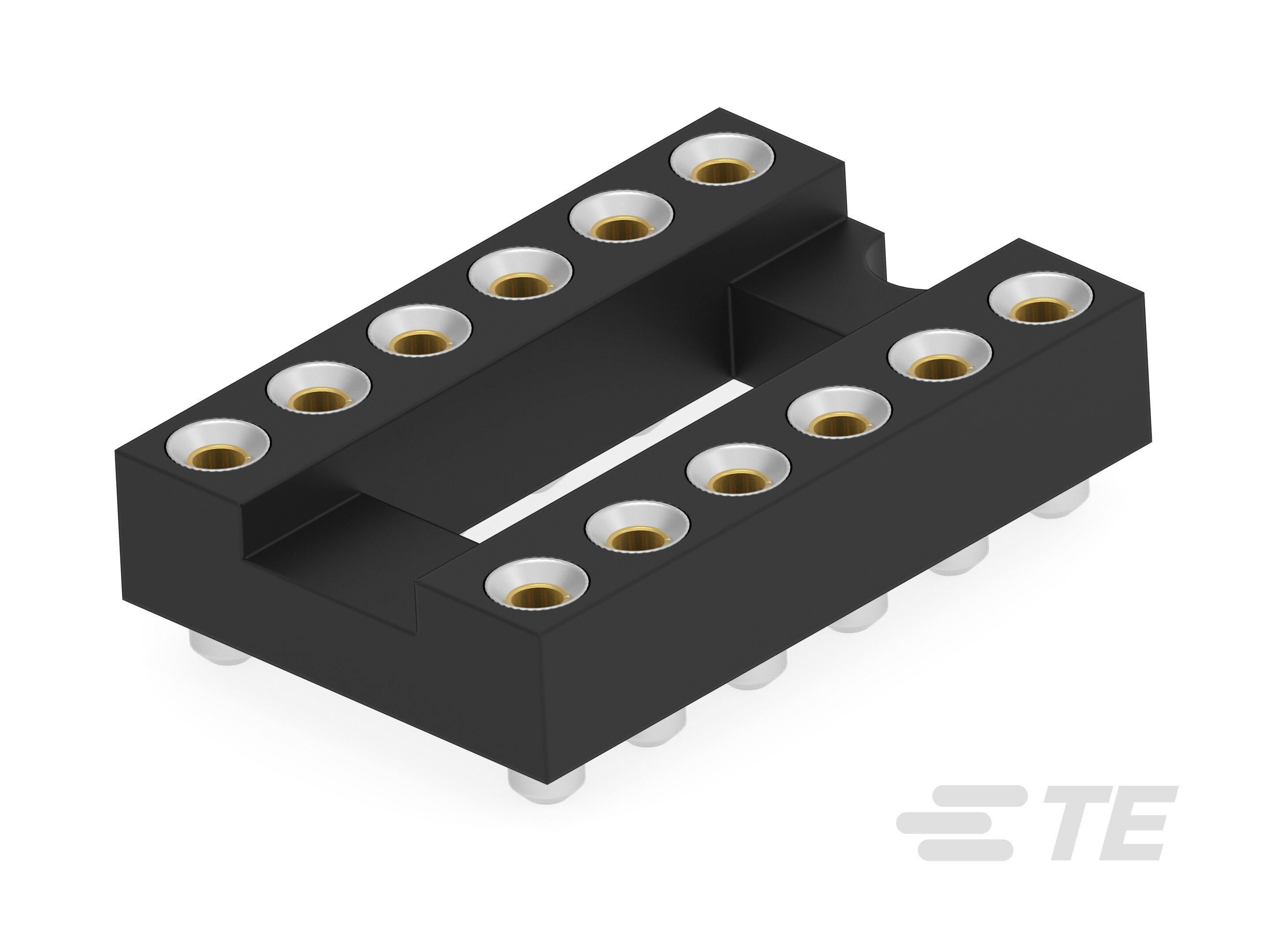

Specification	2485267-4

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	78.7 µin
Contact Material - Mating	Copper Alloy
Contact Material - Post	Copper Alloy
Features	Open Frame
Housing Material	Thermoplastic
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	12 count
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Pitch - Post	0.1 in
Row Spacing	0.3 in
Termination	Solder
Type	DIP, 0.3" (7.62mm) Row Spacing
