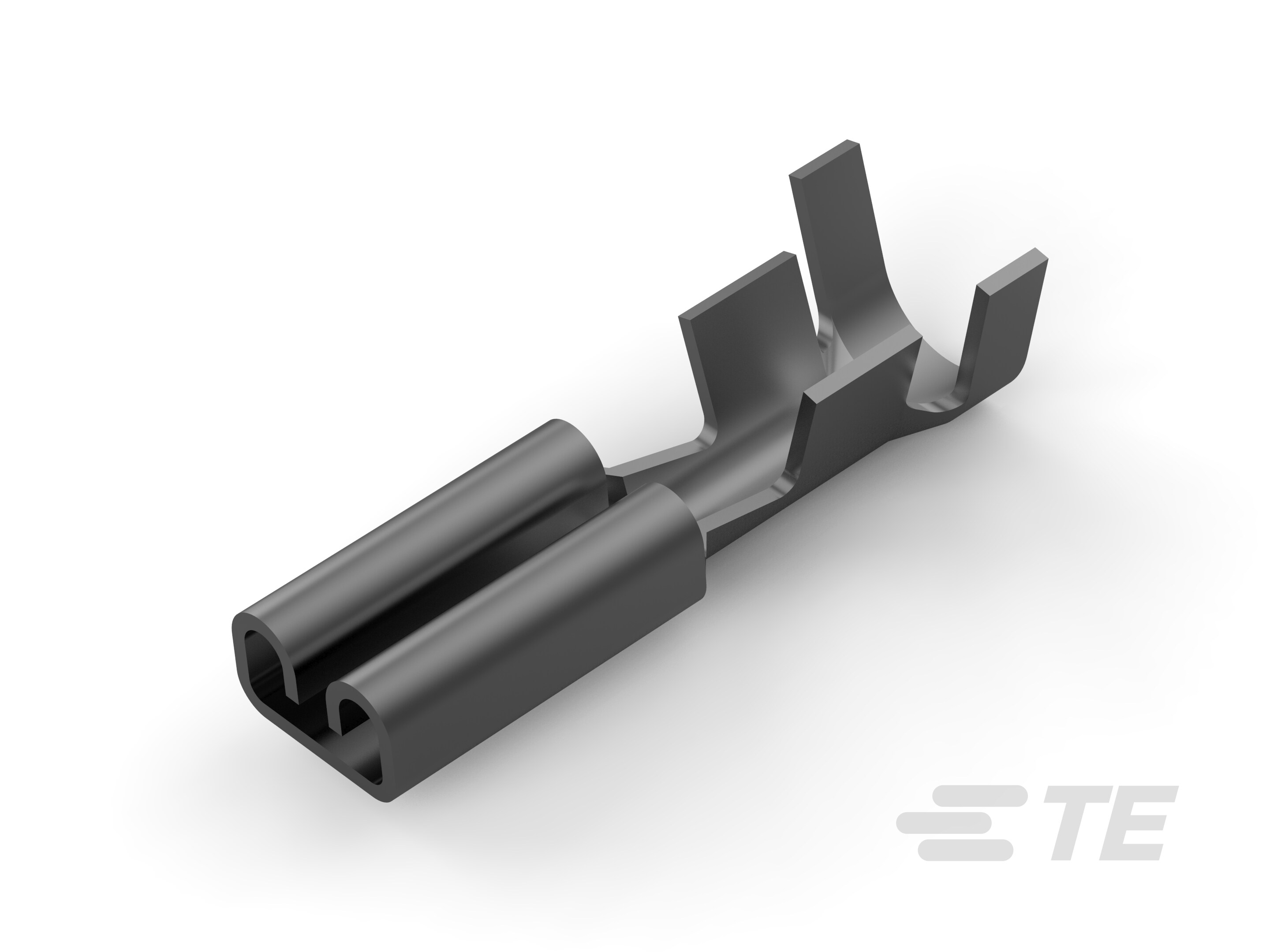

110 FASTON,REC.,20-16 AWG,PTBR-180437-2

180437-2

Active
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL 15-20AWG BRASS F 13.4MM TIN REEL/STRIP

Find alt
110 FASTON,REC.,20-16 AWG,PTBR-180437-2

180437-2

Active
TE Connectivity AMP Connectors

QUICK DISCONNECT TERMINAL 15-20AWG BRASS F 13.4MM TIN REEL/STRIP

Find alt

Description

General part information

FASTON 110 Series

Quick Disconnect Receptacle, 20 – 15 AWG, .51 – 1.65 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Pre-Tin Plating, Strip/Reel, FASTON 110

Technical Specifications

Parameters and characteristics for this part

Specification180437-2
Contact FinishTin
Contact MaterialBrass
FeaturesSerrated Termination
GenderFemale
InsulationNon-Insulated
Length - Overall0.527 in
Mounting TypeFree Hanging (In-Line)
Tab Thickness0.02 in
Tab Width0.11 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)15 AWG
