5177986-3
ActiveTE Connectivity AMP Connectors
5177986-3 - 0.8FH,P05H.5,080,08/SN,TR,SC ROHS COMPLIANT: YES
5177986-3
ActiveTE Connectivity AMP Connectors
5177986-3 - 0.8FH,P05H.5,080,08/SN,TR,SC ROHS COMPLIANT: YES
Description
General part information
5177986-3

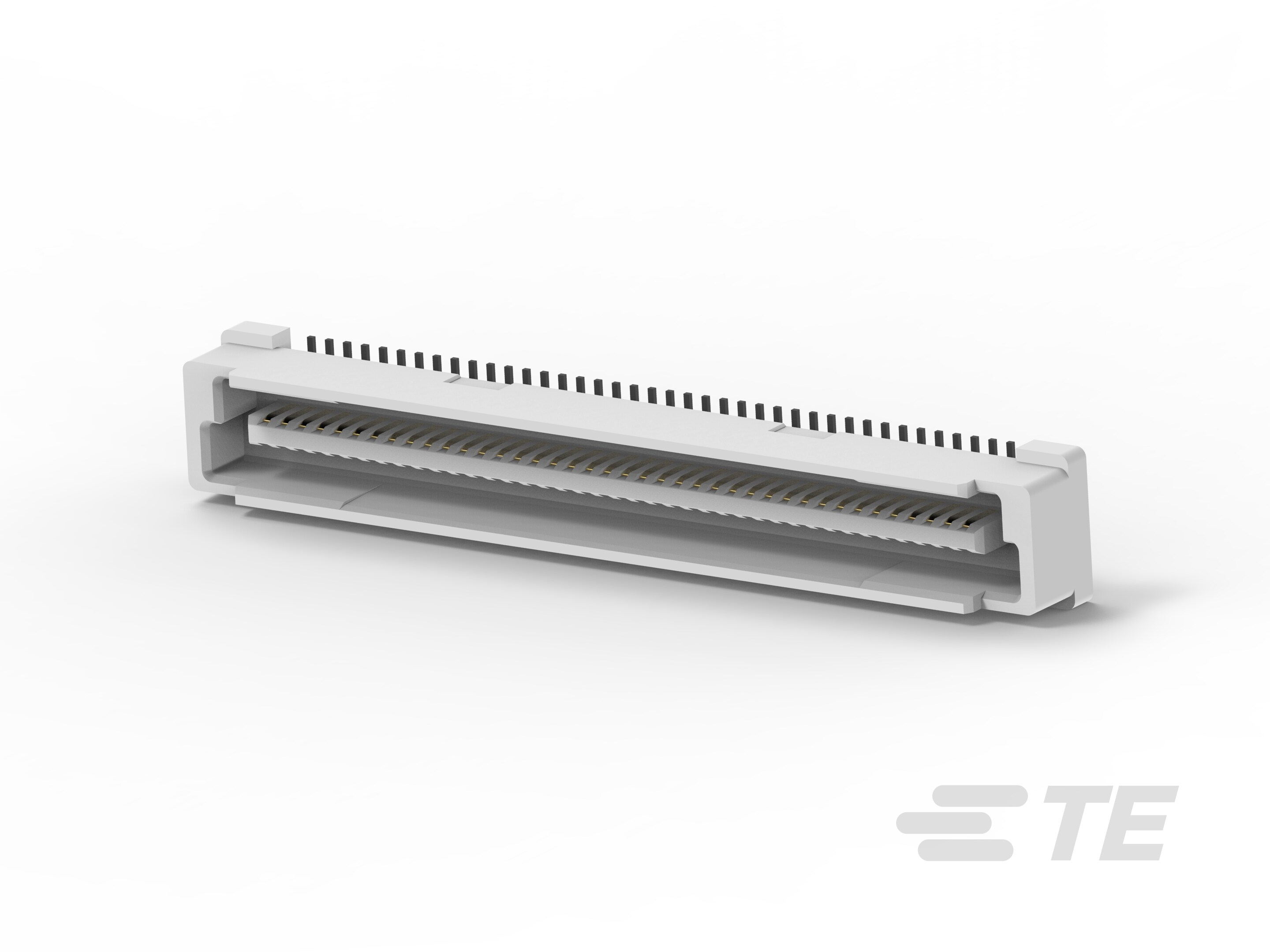

PCB Mount Header, Vertical, Board-to-Board, 80 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Free Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 5177986-3 |
|---|---|
| Connector Type | Center Strip Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 µin |
| Features | Board Guide |
| Height Above Board | 0.191 in |
| Mated Stacking Height Options | 17mm, 13mm, 5mm, 9mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch | 0.031 in |
