2383945-8
ActiveTE Connectivity AMP Connectors

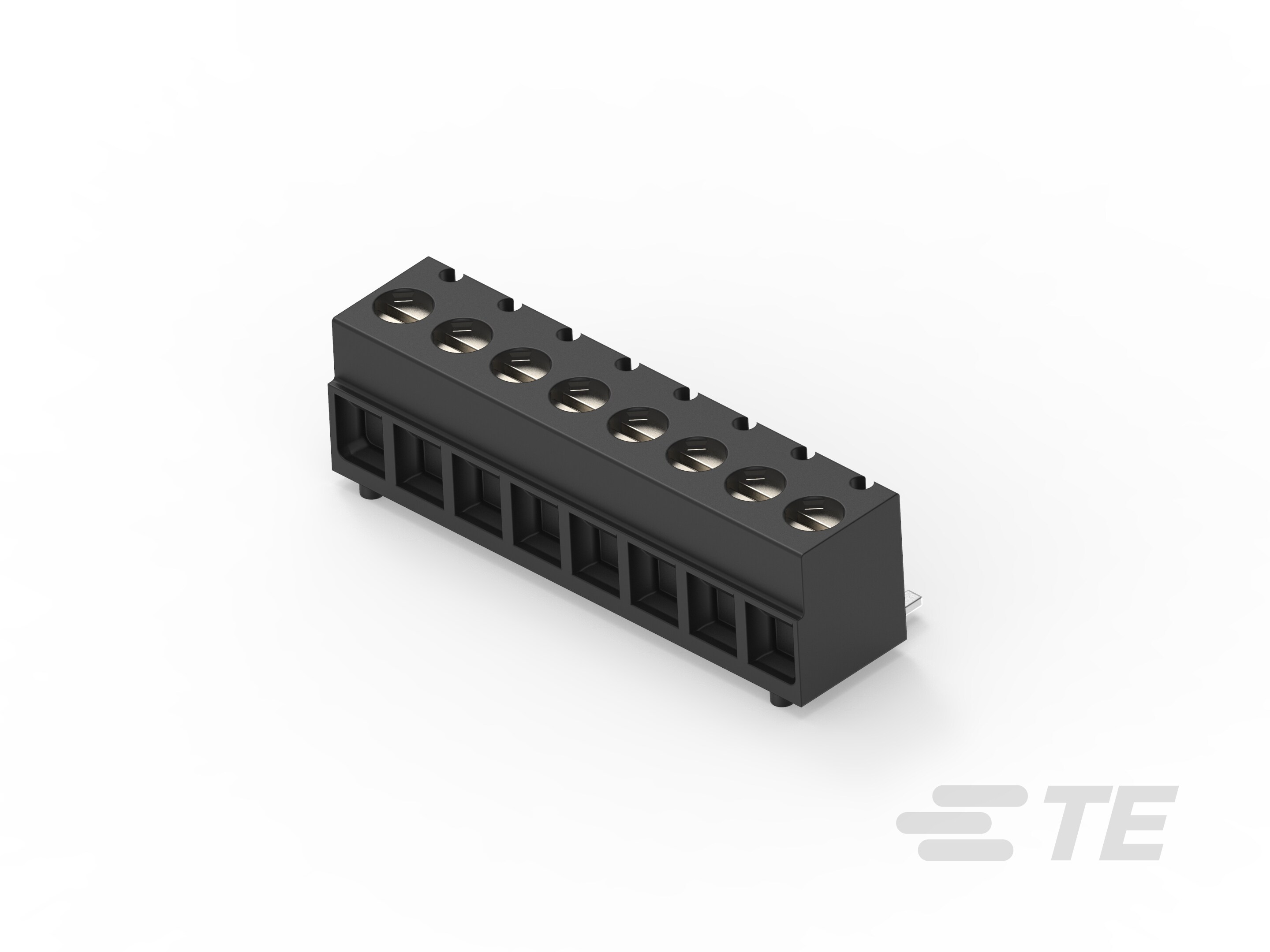

CONN TERMINAL BLOCK 8 POS 3.81MM SOLDER ST SMD 12A/CONTACT T/R
2383945-8
ActiveTE Connectivity AMP Connectors
CONN TERMINAL BLOCK 8 POS 3.81MM SOLDER ST SMD 12A/CONTACT T/R
Description
General part information
2383945-8
8 Position PCB Terminal Block, Header, Wire-to-Board, 3.81 mm [.15 in] Centerline, 1 Row, 90° Wire Entry Angle, 28 – 16 AWG, .08 – 1.31 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 2383945-8 |
|---|---|
| Color | Black |
| Current | 12 A |
| Features | Board Guide |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Pitch | 0.15 in |
| Positions Per Level | 8 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
