LDZ2817330K-10
ObsoleteLaird Technologies EMI
FIXED IND 33UH 26A 3 MOHM TH
LDZ2817330K-10
ObsoleteLaird Technologies EMI
FIXED IND 33UH 26A 3 MOHM TH
Description
General part information
LDZ2817330K-10

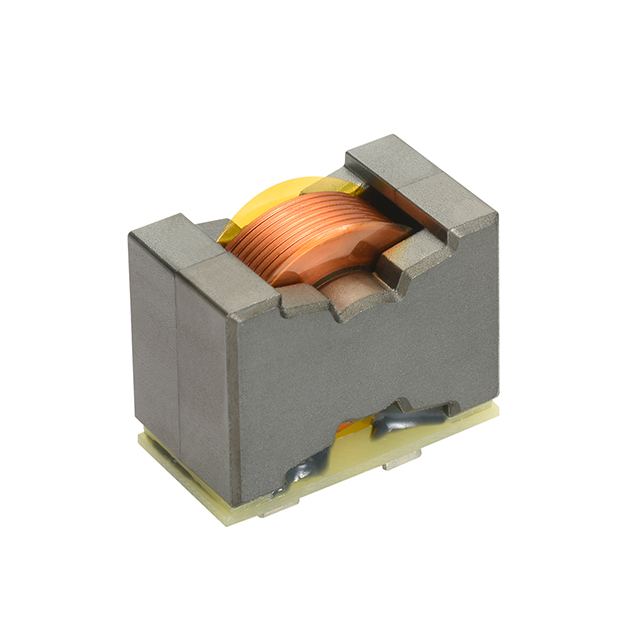

33 µH Shielded Drum Core, Wirewound Inductor 26 A 3mOhm Max Radial, Vertical, 4 Leads (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | LDZ2817330K-10 |
|---|---|
| Current - Saturation (Isat) | 10.3 A |
| Current Rating | 26 A |
| DC Resistance (DCR) (Max) | 3 mOhm |
| Height - Seated (Max) | 0.906 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 300 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Vertical, Radial |
| Shielding | Shielded |
| Size / Dimension Length | 1.063 in |
| Size / Dimension Width | 0.669 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
