2-2323751-4

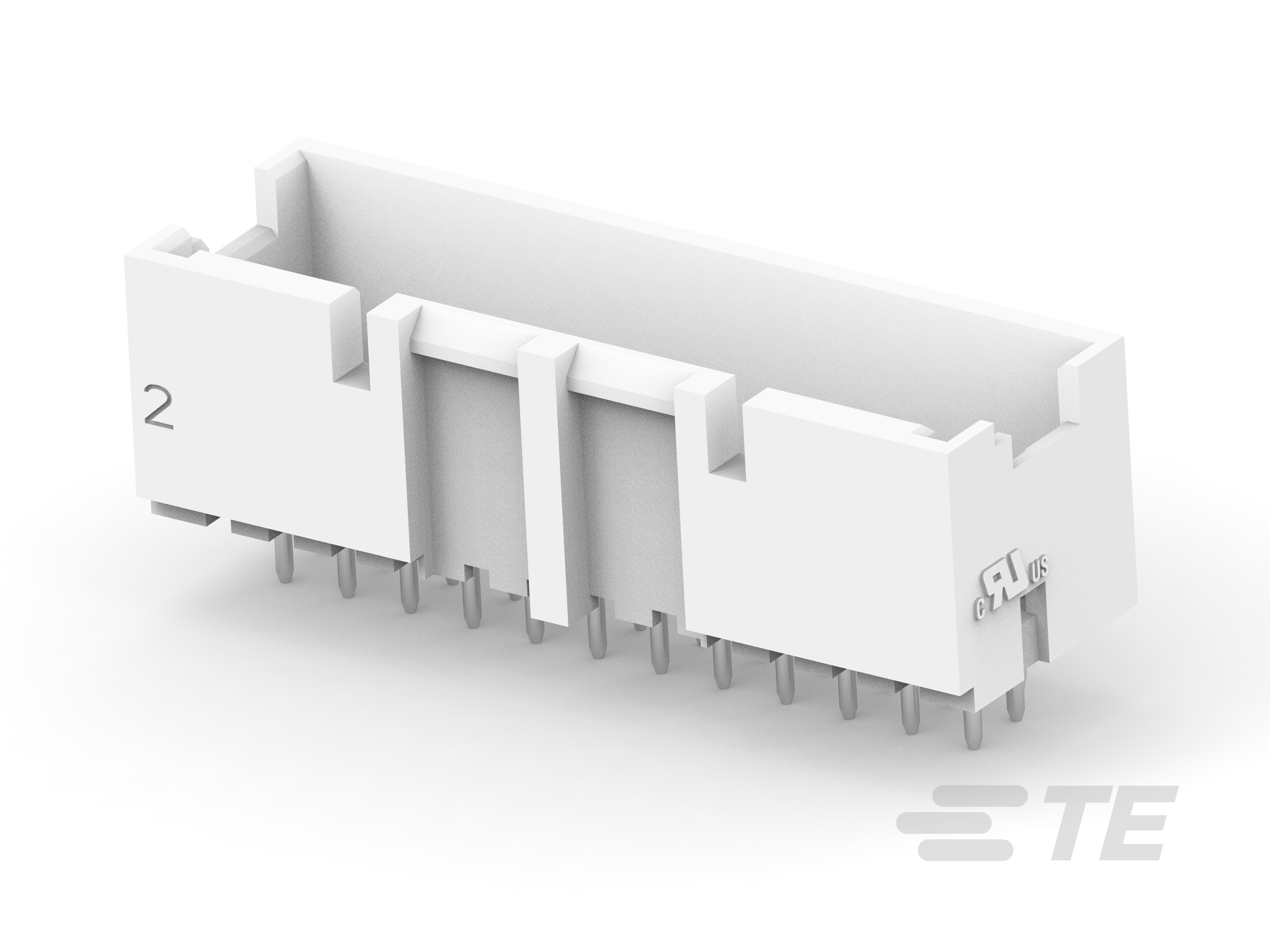

PCB Mount Header, Vertical, Wire-to-Board, 24 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Economy Power 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2323751-4 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 8 µin |
| Contact Length - Post | 0.134 in |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Color | Natural |
| Insulation Height | 0.386 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 24 pos |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.098 in |
| Row Spacing - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 V |
