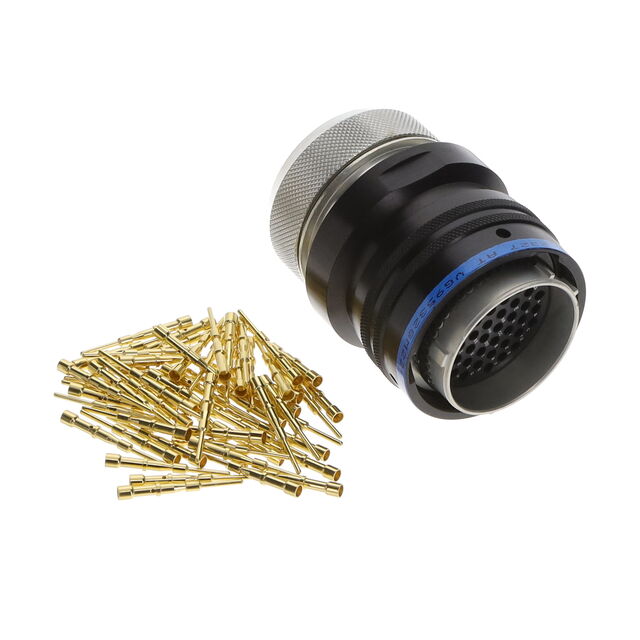

VG95328M22-55PXJ
ActiveMcGill Microwave Systems
VG95328 55C 55#20 PIN CABLE PLUG
VG95328M22-55PXJ
ActiveMcGill Microwave Systems
VG95328 55C 55#20 PIN CABLE PLUG
Description
General part information
VG95328M22-55PXJ
55 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | VG95328M22-55PXJ |
|---|---|
| Applications | Military |
| Color | Black |
| Connector Type | Male Pins, Plug |
| Fastening Type | Reverse Bayonet Lock |
| Number of Positions | 55 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | X |
| Shell Finish | Zinc-Tin |
| Shell Size - Insert (Maximum) | 55 |
| Shell Size - Insert (Minimum) | 22 |
| Shielding | Shielded |
| Termination | Crimp |
