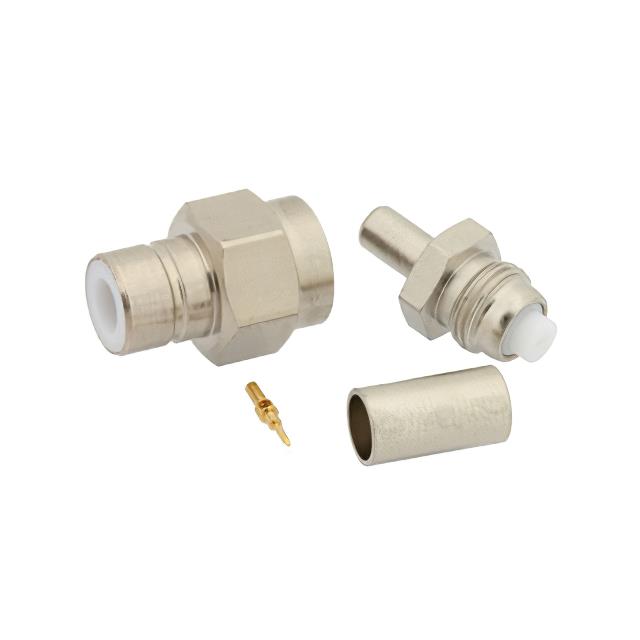

PE4163
ObsoletePasternack
75 OHM SMB JACK CONNECTOR CRIMP/
PE4163
ObsoletePasternack
75 OHM SMB JACK CONNECTOR CRIMP/
Description
General part information
PE4163
SMB Connector Jack, Male Pin 75 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4163 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 195, RG-180 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 375 V |
