TERMINAL,SOLIS R 6 1/2-320344

320344

Active
TE Connectivity AMP Connectors

CONN RING CIRC 6AWG #1/2 CRIMP

Find alt
TERMINAL,SOLIS R 6 1/2-320344

320344

Active
TE Connectivity AMP Connectors

CONN RING CIRC 6AWG #1/2 CRIMP

Find alt

Description

General part information

320344

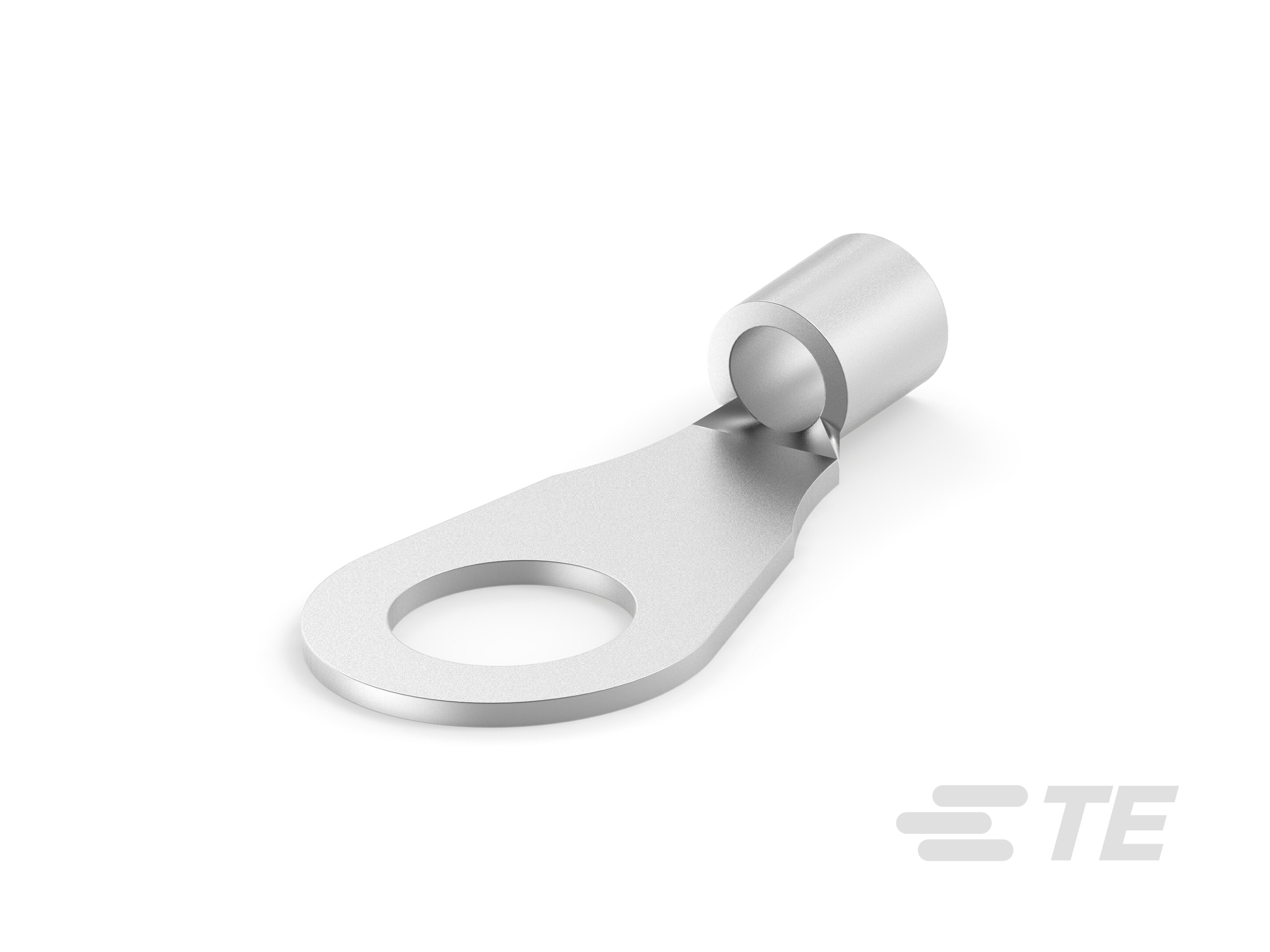

Closed Ring Tongue Terminal, 6 AWG, 1/2 / M12 Stud, 13.08 mm [.515 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Uninsulated

Technical Specifications

Parameters and characteristics for this part

Specification320344
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Brazed Seam
InsulationNon-Insulated
Length - Overall1.84 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.5 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.057 in
Width - Outer Edges0.875 in
Wire Gauge6 AWG
