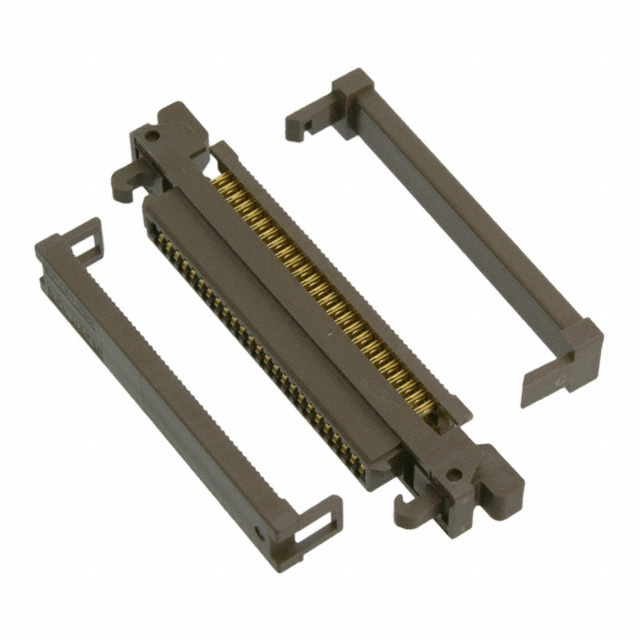

P25LE-050S-DA

Active

CONN SOCKET 50POS IDC 30AWG GOLD

Search across all available documentation for this part.

Active

CONN SOCKET 50POS IDC 30AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 50POS IDC 30AWG GOLD

Part	Contact Finish	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Color	Number of Positions	Wire Gauge	Cable Termination	Wire Type	Connector Type	Contact Finish Thickness	Features	Contact Type	Fastening Type
3M P25LE-050S-DA	Gold	Free Hanging (In-Line)	2	0.05 in	1.27 mm	Brown	50	30 AWG	IDC	Ribbon Cable	Socket	Flash	Feed Through, Strain Relief	Outer Shroud Contact	Latch Lock/Eject Hooks
3M P25LE-080S-DA	Gold	Free Hanging (In-Line)	2	0.05 in	1.27 mm	Brown	80	30 AWG	IDC	Ribbon Cable	Socket	Flash	Feed Through, Strain Relief	Outer Shroud Contact	Latch Lock/Eject Hooks
3M P25LE-020S-TGF	Gold	Free Hanging (In-Line)	2	0.05 in	1.27 mm	Brown	20	30 AWG	IDC	Ribbon Cable	Socket	Flash	Feed Through, Strain Relief	Outer Shroud Contact	Latch Lock/Eject Hooks
3M P25LE-030S-DA	Gold	Free Hanging (In-Line)	2	0.05 in	1.27 mm	Brown	30	30 AWG	IDC	Ribbon Cable	Socket	Flash	Feed Through, Strain Relief	Outer Shroud Contact	Latch Lock/Eject Hooks

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Socket Connector IDC Gold 30 AWG
