10-069522-08S
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED PLUG
10-069522-08S
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED PLUG
Description
General part information
10-069522-08S

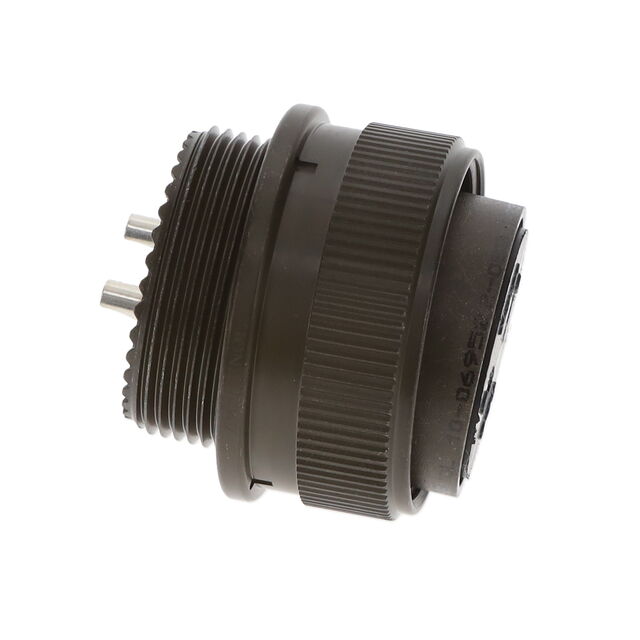

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 10-069522-08S |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 23 A |
| Fastening Type | Threaded |
| Ingress Protection | Environment Sealed |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 22 mm |
| Shell Size - Insert Width | 8 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 1250 VAC |
| Voltage Rating (DC) | 1750 VDC |
