Specification	6-1415541-2

Approval Agency	VDE, cURus
Coil Insulation	Class F
Coil Type	Non Latching
Contact Form	Form, 2 Form C, C, 2, DPDT
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Load - Max Switching (Apparent Power)	4800 VA
Mounting Type	Socketable
Operate Time	15 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage AC (Max)	400 VAC
Termination Style	Plug In

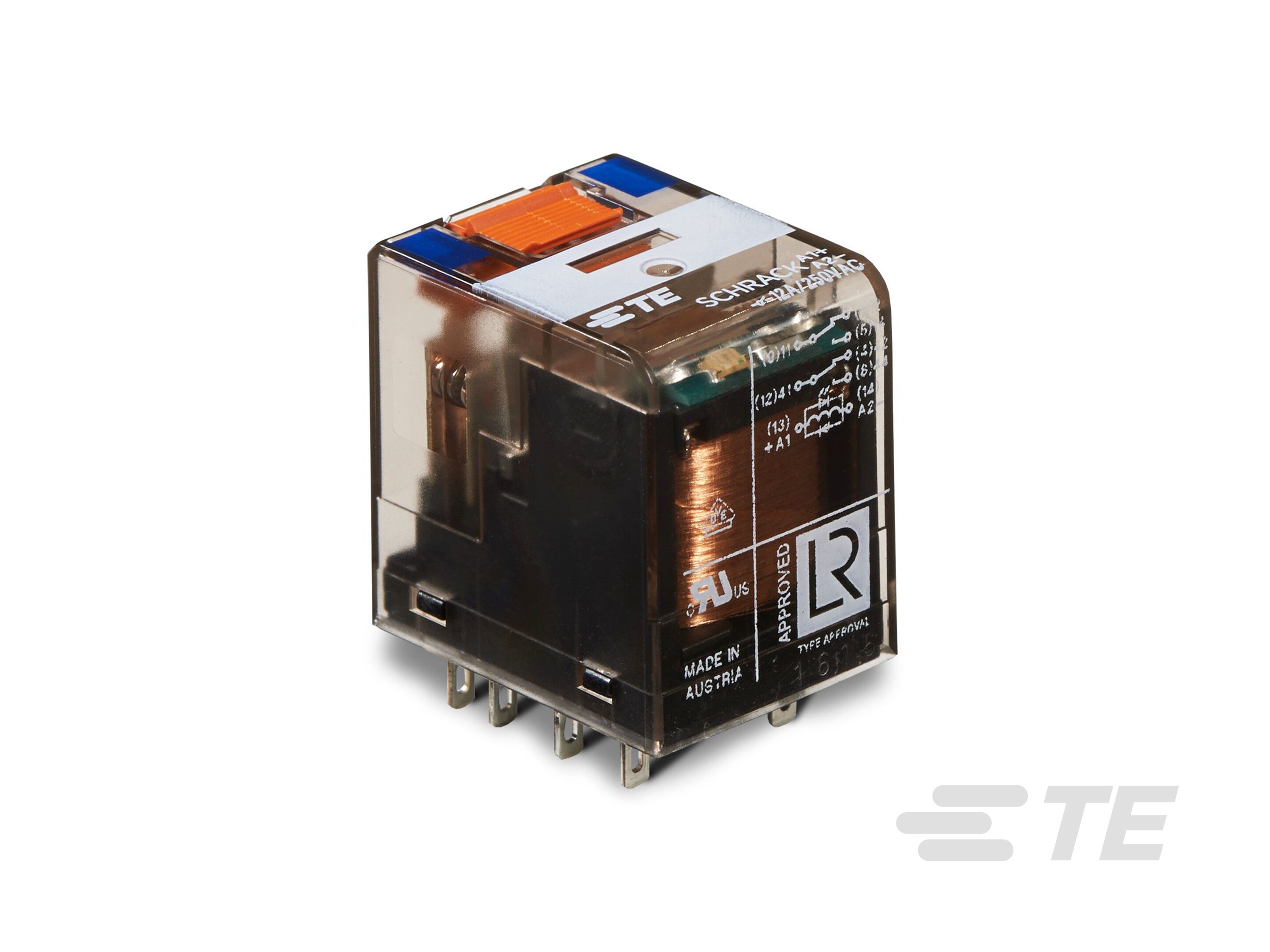

SCHRACK Miniature Relay PT Series

...

Part	Must Operate Voltage	Quick Connect Size (0.110")	Termination Style	Coil Insulation	Contact Material	Coil Type	Approval Agency	Must Release Voltage	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Pin Count	Contact Form	Operate Time	Release Time	Switching Voltage AC (Max)	Coil Voltage	Mounting Type	Load - Max Switching (Apparent Power)	Coil Current	Relay Type	Coil Resistance
TE Connectivity AMP Connectors PT580110	82.5 VDC	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	11 VDC	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT	15 ms	10 ms	240 VAC	110 V	Socketable	1440 VA	6.8 mA	General Purpose
TE Connectivity AMP Connectors 1-1415039-1	43.2 VDC	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	14.4 VDC	Lighted Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT	15 ms	10 ms	240 VAC	48 V	Socketable	1440 VA	61.8 mA	General Purpose	777 Ohms
TE Connectivity AMP Connectors PT570730	184 VDC	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	69 VAC	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT			240 VAC	230 VDC	Socketable	1440 VA	11.8 mA	General Purpose	19.47 kOhms
TE Connectivity AMP Connectors PT571012	9 VDC		PC Pin	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	1.2 V	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT	15 ms	10 ms	240 VAC	12 VAC	Through Hole	1440 VA	62.5 mA	General Purpose
TE Connectivity AMP Connectors PT581024	18 VDC		PC Pin	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	2.4 V	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT	15 ms	10 ms	240 VAC	24 VDC	Through Hole	1440 VA	30.8 mA	General Purpose	777 Ohms
TE Connectivity AMP Connectors PT580024	18 VDC	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	2.4 V	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT	15 ms	10 ms	240 VAC	24 VDC	Socketable	1440 VA	30.8 mA	General Purpose
TE Connectivity AMP Connectors PT270006	4.5 VDC	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	0.6 VAC	Mechanical Indicator Test Button	-40 °C	70 °C	12 A		2 2 Form C C DPDT Form	15 ms	10 ms	400 VAC	6 VAC	Socketable	4800 VA	125 mA	General Purpose
TE Connectivity AMP Connectors PT370R24	19.2 V	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	7.2 VAC	Lighted Indicator Mechanical Indicator Test Button	-40 °C	70 °C	10 A	3 pins	3 Form C PDT			400 VAC	24 VDC	Socketable	4000 VA	125 mA	General Purpose	192 Ohms
TE Connectivity AMP Connectors PT571730	184 VDC		PC Pin	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	69 VAC	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT			240 VAC	230 VDC	Through Hole	1440 VA	11.8 mA	General Purpose	19.47 kOhms
TE Connectivity AMP Connectors PT570024	18 VDC	0.11 in	Plug In Quick Connect	Class F	Silver Nickel (AgNi)	Non Latching	cURus VDE	2.4 V	Mechanical Indicator Test Button	-40 °C	70 °C	6 A	4	4 C Form PDT	15 ms	10 ms	240 VAC	24 VDC	Socketable	1440 VA	30.8 mA	General Purpose
