Description
General part information
RAP-06RF23-1S1NB

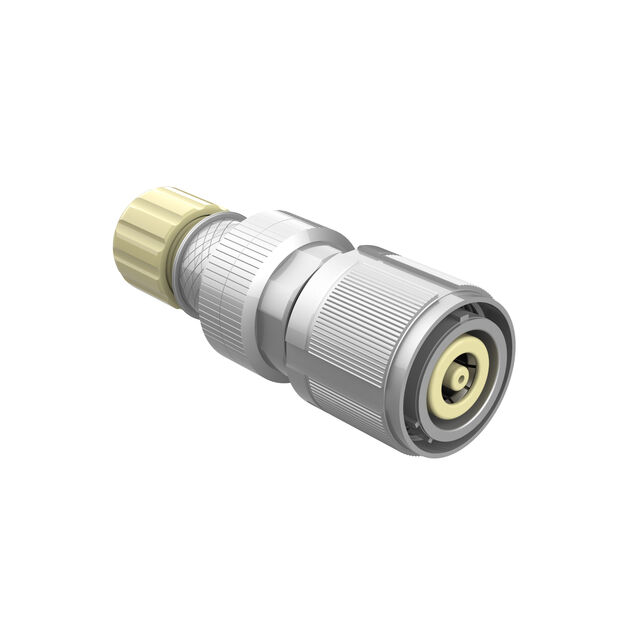

1 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | RAP-06RF23-1S1NB |
|---|---|
| Backshell Material | Aluminum |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper |
| Current Rating | 675 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | N (Normal) |
| Plating | Electroless Nickel |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 23 |
| Shell Size - Insert | 23 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 2500 VAC |
| Voltage Rating (DC) | 3500 VDC |
