28R1261-100
ActiveLaird Technologies EMI
FERRITE CORE 350 OHM SOLID
28R1261-100
ActiveLaird Technologies EMI
FERRITE CORE 350 OHM SOLID
Description
General part information
28R1261-100

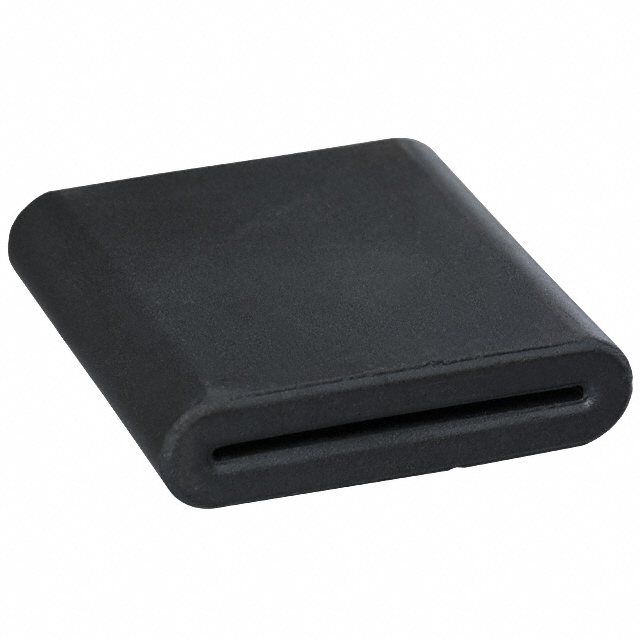

Solid Free Hanging Ferrite Core 350Ohm @ 100MHz ID 0.988" W x 0.035" H (25.10mm x 0.90mm) OD 1.260" W x 0.305" H (32.00mm x 7.75mm) Length 1.378" (35.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28R1261-100 |
|---|---|
| Design | Solid |
| Impedance | 350 Ohm |
| Inner Dimension Height | 0.035 in |
| Inner Dimension Width | 0.988 in |
| Length | 1.378 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.305 in |
| Outer Dimension Width | 1.26 in |
| Type | Flat |
