1924667-1
ActiveTE Connectivity AMP Connectors
13P HYBRID - 1PC UNSEALED PLUG, KEY A
1924667-1
ActiveTE Connectivity AMP Connectors
13P HYBRID - 1PC UNSEALED PLUG, KEY A
Description
General part information
1924667-1

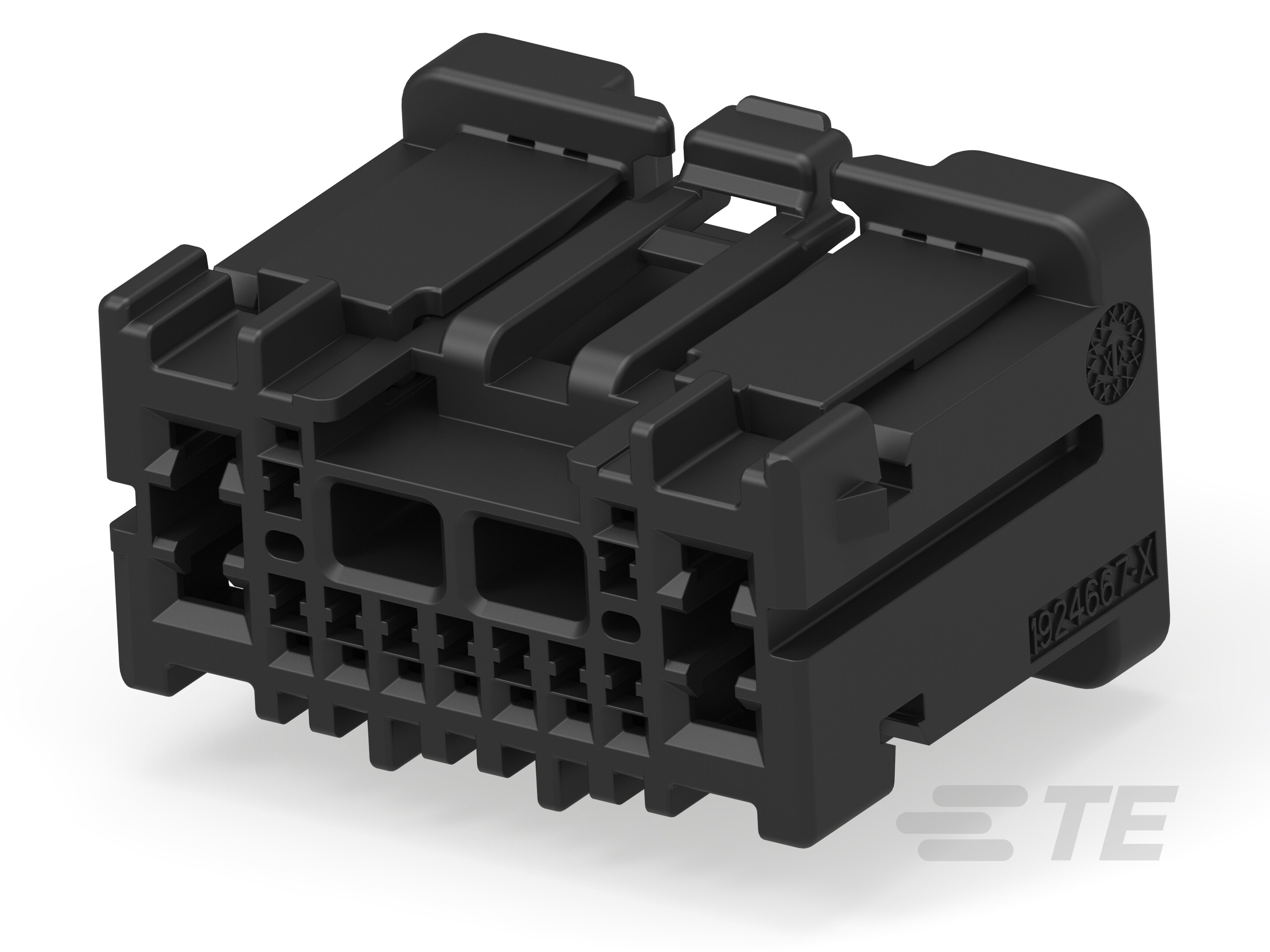

13 Position Housing, Housing for Female Terminals, 2.54 mm [.1 in] Centerline, Black, Wire & Cable, Signal, Generation Y Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1924667-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Secondary Locking Device |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 13 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
