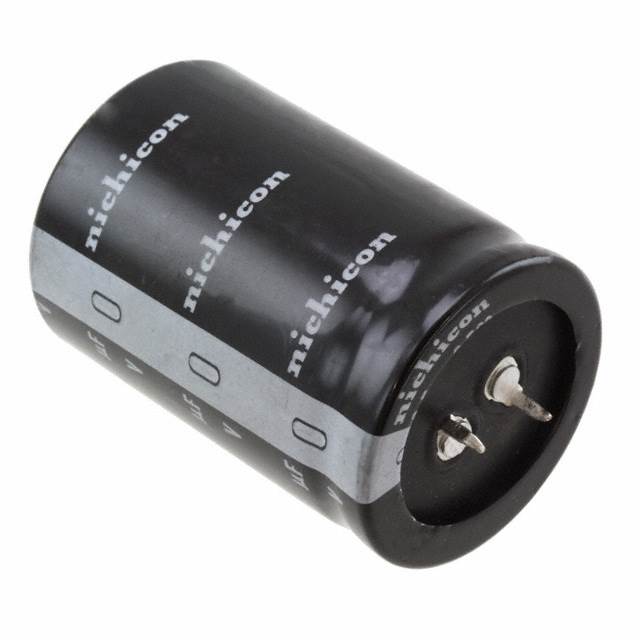

Specification	LLG2G102MELC50

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max)	2.047 in
Lead Spacing	0.394 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	3.3 A, 4.719 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	400 V

LLG Series

Part	Polarization	Lifetime	Ripple Current	Package / Case	Height - Seated (Max)	Applications	Tolerance	Size / Dimension Diameter	Lead Spacing	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Capacitance	Voltage - Rated
Nichicon LLG2D561MELA25	Polar	2000 Hrs	2.07 A 3.105 A	Can - Snap-In Radial	1.063 in	General Purpose	20 %	0.984 in	0.394 in	Through Hole	-40 °C	85 °C	560 µF	200 VDC
Nichicon LLG2W221MELA35	Polar	2000 Hrs	1.5 A 2.145 A	Can - Snap-In Radial	1.457 in	General Purpose	20 %	0.984 in	0.394 in	Through Hole	-25 °C	85 °C	220 µF	450 V
Nichicon LLG2E821MELA40	Polar	2000 Hrs	2.77 A 4.155 A	Can - Snap-In Radial	1.654 in	General Purpose	20 %	0.984 in	0.394 in	Through Hole	-40 °C	85 °C	820 µF	250 V
Nichicon LLG2E222MELC50	Polar	2000 Hrs	4.75 A 7.125 A	Can - Snap-In Radial	1.969 in	General Purpose	20 %	1.378 in	0.394 in	Through Hole	-40 °C	85 °C	2200 ĄF	250 V
Nichicon LLG2C122MELA35	Polar	2000 Hrs	3.25 A 4.875 A	Can - Snap-In Radial	1.457 in	General Purpose	20 %	0.984 in	0.394 in	Through Hole	-40 °C	85 °C	1200 µF	160 V
Nichicon LLG2C152MELZ50	Polar	2000 Hrs	3.4 A 5.1 A	Can - Snap-In Radial	2.047 in	General Purpose	20 %	0.866 in	0.394 in	Through Hole	-40 °C	85 °C	1500 µF	160 V
Nichicon LLG2E122MELB40	Polar	2000 Hrs	3.84 A 5.76 A	Can - Snap-In Radial	1.654 in	General Purpose	20 %	1.181 in	0.394 in	Through Hole	-40 °C	85 °C	1200 µF	250 V
Nichicon LLG2G561MELB40	Polar	2000 Hrs	2.39 A 3.4177 A	Can - Snap-In Radial	1.654 in	General Purpose	20 %	1.181 in	0.394 in	Through Hole	-25 °C	85 °C	560 µF	400 V
Nichicon LLG2W681MELC45	Polar	2000 Hrs	2.82 A 4.0326 A	Can - Snap-In Radial	1.85 in	General Purpose	20 %	1.378 in	0.394 in	Through Hole	-25 °C	85 °C	680 µF	450 V
Nichicon LLG2W331MELC30	Polar	2000 Hrs	1.95 A 2.7885 A	Can - Snap-In Radial	1.26 in	General Purpose	20 %	1.378 in	0.394 in	Through Hole	-25 °C	85 °C	330 µF	450 V
