150154J630IE
ObsoleteCornell Dubilier Knowles

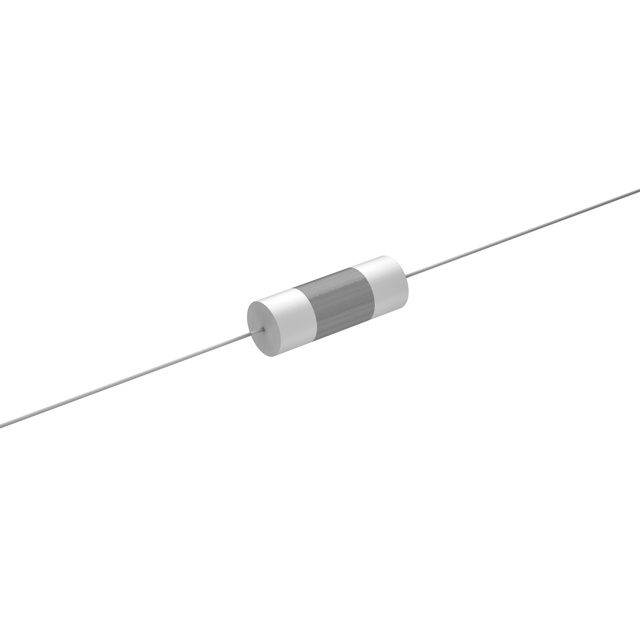

CAP FILM 0.15UF 5% 630VDC AXIAL
150154J630IE
ObsoleteCornell Dubilier Knowles
CAP FILM 0.15UF 5% 630VDC AXIAL
Description
General part information
150154J630IE
0.15 µF Film Capacitor 220V 630V Polyester, Metallized Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 150154J630IE |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.15 µF |
| Dielectric Material | Polyester, Metallized |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.394 in |
| Size / Dimension Length | 1.102 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 220 V |
| Voltage Rating - DC | 630 V |
