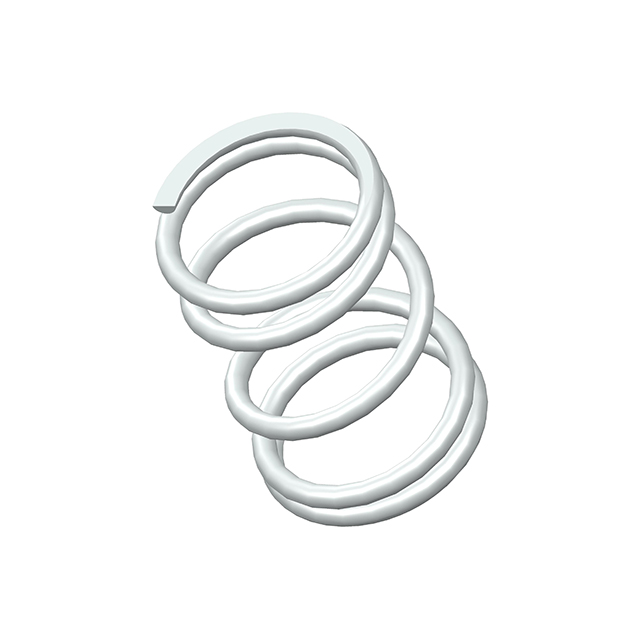

71341SCS
ActiveCentury Spring Corp
COMP O= .420,L= .63,W= .042
71341SCS
ActiveCentury Spring Corp
COMP O= .420,L= .63,W= .042
Description
General part information
71341SCS
COMP O= .420,L= .63,W= .042
Technical Specifications
Parameters and characteristics for this part
| Specification | 71341SCS |
|---|---|
| Diameter - Inside | 0.336 in |
| Diameter - Outside | 0.42 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.63 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 23 lbs/in |
| Type | Compression |
| Wire Diameter | 0.042 in |
