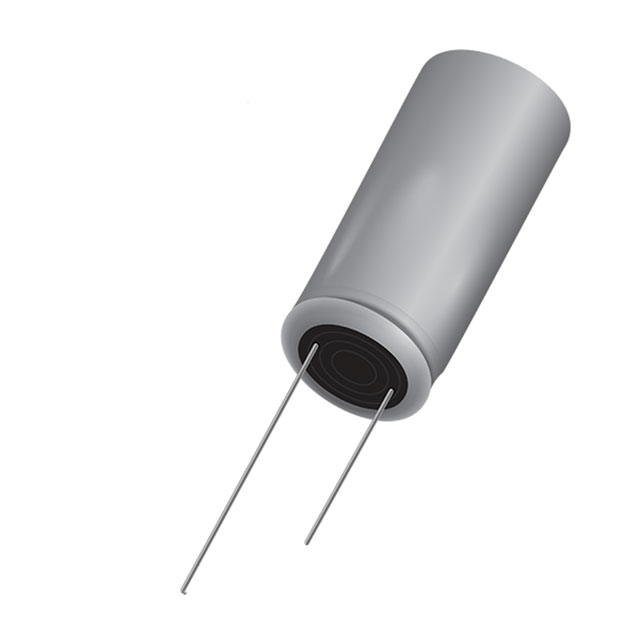

RHA0809330M050B
ActiveKYOCERA AVX
CAP ALUM HYBRID 33UF 20% 50V TH
RHA0809330M050B
ActiveKYOCERA AVX
CAP ALUM HYBRID 33UF 20% 50V TH
Description
General part information
RHA0809330M050B
33 µF 50 V Aluminum - Polymer Capacitors Radial, Can 35mOhm 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | RHA0809330M050B |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 35 mOhm |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.138 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 1.6 A, 80 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 50 V |
