Description
General part information

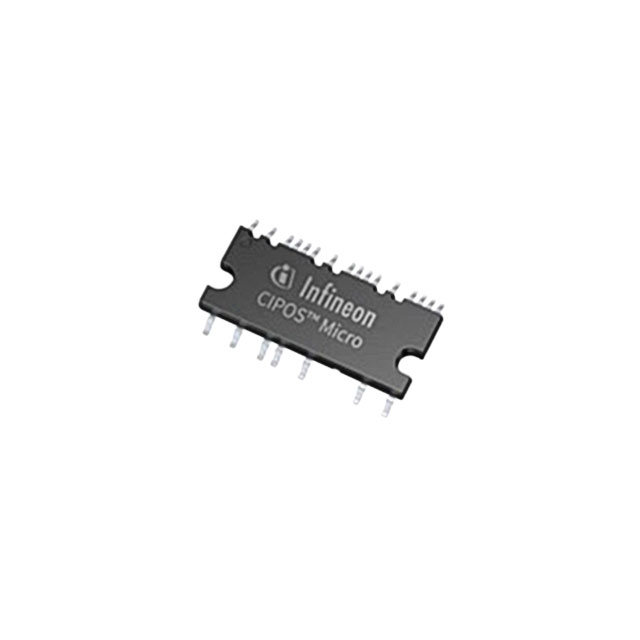

IM241S6S1BAUMA1
CIPOS™ Micro600 V, 2 A three-phase RCD2 IGBT based intelligent power module with open emitter in SOP 29x12 package providing fully-featured compact inverter solution for low motor drive applications like fans, pumps and light load appliances.
Technical Specifications
Parameters and characteristics for this part
| Specification | IM241S6S1BAUMA1 |
|---|---|
| Channel Count | 3 |
| Configuration | Phase Inverter |
| Current | 2 A |
| Mounting Type | Surface Mount |
| Package / Case | 23-PowerSMD Module |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 2000 V |
