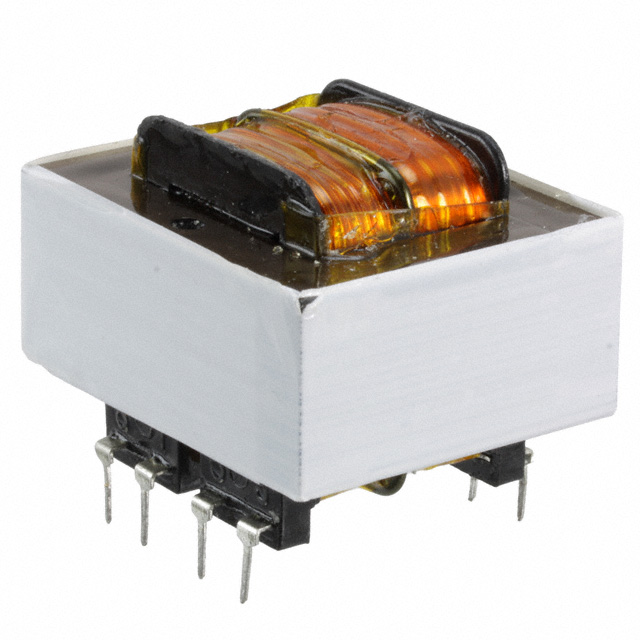

FS10-1200-C2
ActiveTriad Magnetics
POWER XFMR 10 VCT @ 1200 MA UL/CUL - CLASS 2, TUV, 115/230V SPLIT PACK PCB MOUNT / FS10-1200-C2 ROHS COMPLIANT: YES
FS10-1200-C2
ActiveTriad Magnetics
POWER XFMR 10 VCT @ 1200 MA UL/CUL - CLASS 2, TUV, 115/230V SPLIT PACK PCB MOUNT / FS10-1200-C2 ROHS COMPLIANT: YES
Description
General part information
FS10-1200-C2
POWER XFMR 10 VCT @ 1200 MA UL/CUL - CLASS 2, TUV, 115/230V SPLIT PACK PCB MOUNT / FS10-1200-C2 ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | FS10-1200-C2 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 2.4 A |
| Current - Output (Max) Series | 1.2 A |
| Height - Seated (Max) | 36.5 mm |
| Mounting Type | Through Hole |
| Power - Max | 12 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 47.63 mm |
| Size / Dimension Width | 39.67 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4200 VDC |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 5 V |
| Voltage - Secondary (Full Load) (Series) | 10 V |
| Weight | 0.7 lb |
