ST2012SB32768C0HPWB4
ObsoleteKYOCERA AVX

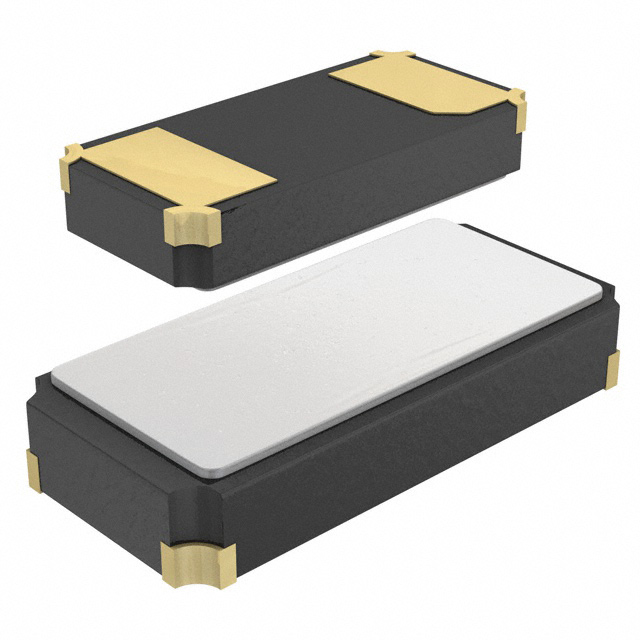

CRYSTAL 32.7680KHZ 7PF SMD
ST2012SB32768C0HPWB4
ObsoleteKYOCERA AVX
CRYSTAL 32.7680KHZ 7PF SMD
Description
General part information
ST2012SB32768C0HPWB4
32.768 kHz ±20ppm Crystal 7pF 80 kOhms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ST2012SB32768C0HPWB4 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Stability | 200 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.024 in |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 2 mm |
| Package Name | 2-SMD |
| Package Width | 1.2 mm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.047 in |
| Type | kHz Crystal (Tuning Fork) |
