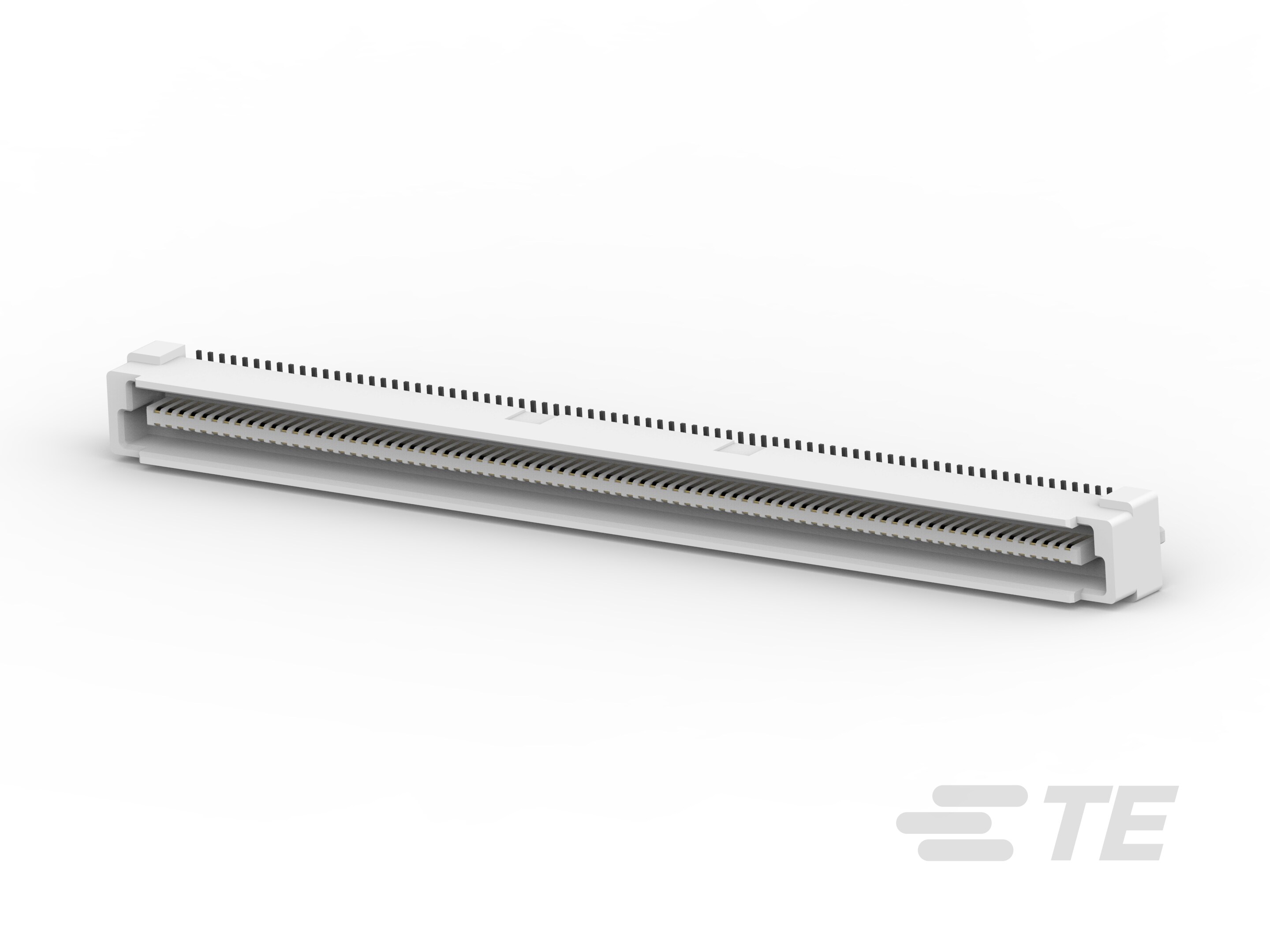

5179029-8
ActiveTE Connectivity AMP Connectors
CONN FINE PITCH CONNECTOR HDR 160 POS 0.8MM SOLDER ST SMD BOX/TUBE
5179029-8
ActiveTE Connectivity AMP Connectors
CONN FINE PITCH CONNECTOR HDR 160 POS 0.8MM SOLDER ST SMD BOX/TUBE
Description
General part information
1 mm Free Height Series
PCB Mount Header, Vertical, Board-to-Board, 160 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Free Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 5179029-8 |
|---|---|
| Connector Type | Center Strip Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 µin |
| Features | Board Guide |
| Height Above Board | 0.22 in |
| Mated Stacking Height Options | 10mm, 14mm, 18mm, 6mm |
| Mounting Type | Surface Mount |
| Number of Positions | 160 |
| Number of Rows | 2 |
| Pitch | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
