B82559A4352A033
ActiveEPCOS - TDK Electronics

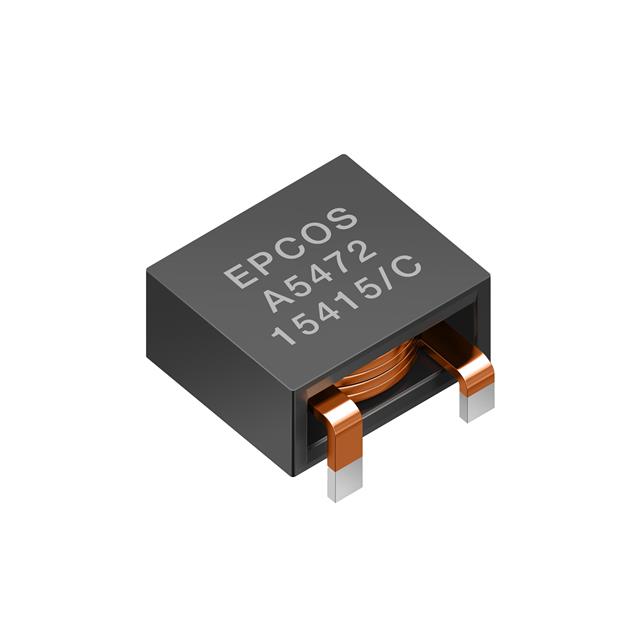

ERU33 PTH FLAT WIRE INDUCTOR 3.5
B82559A4352A033
ActiveEPCOS - TDK Electronics
ERU33 PTH FLAT WIRE INDUCTOR 3.5
Description
General part information
B82559A4352A033
3.5 µH Shielded Wirewound Inductor 57.5 A 0.85mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82559A4352A033 |
|---|---|
| Current - Saturation (Isat) | 87 A |
| Current Rating | 57.5 A |
| DC Resistance (DCR) | 0.85 mOhm |
| Height - Seated (Max) | 0.606 in |
| Inductance | 3.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 1.299 in |
| Size / Dimension Width | 1.154 in |
| Tolerance | 12 % |
| Type | Wirewound |
