Description
General part information

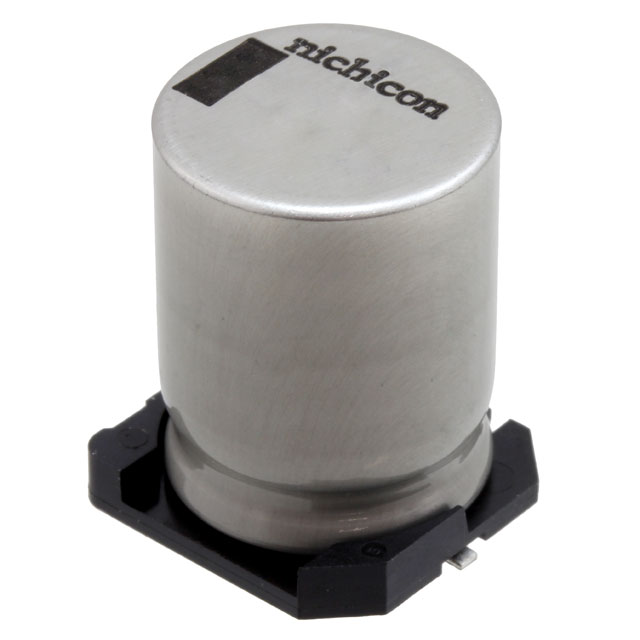

UUJ2A331MRQ1MS
330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UUJ2A331MRQ1MS |
|---|---|
| Applications | General Purpose |
| Capacitance | 330 µF |
| Height - Seated (Max) | 0.886 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 500 mA, 750 mA |
| Size / Dimension Diameter | 0.787 in |
| Surface Mount Land Length | 0.831 in |
| Surface Mount Land Width | 0.831 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
