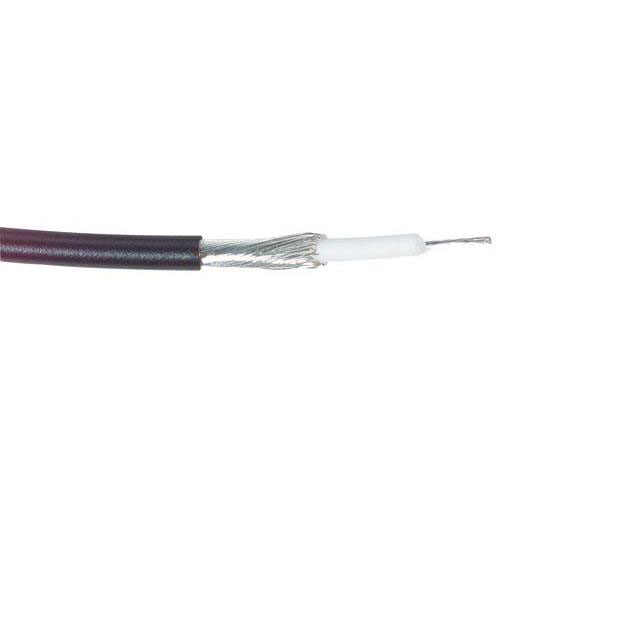

CTL1C-250
ActivePasternack
CABLE BULK THIN LINE 250'
CTL1C-250
ActivePasternack
CABLE BULK THIN LINE 250'
Description
General part information
CTL1C-250
Coaxial Cable 28 AWG 250.0' (76.20m) 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | CTL1C-250 |
|---|---|
| Cable Type | Coaxial |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 36 AWG |
| Dielectric Diameter | 0.063 in |
| Dielectric Material | Foam Polyethylene (FPE) |
| Impedance | 75 Ohm |
| Jacket (Insulation) Diameter | 0.11 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 250 ft |
| Operating Temperature | 80 °C |
| Shield Coverage | 95 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Wire Gauge | 28 AWG |
