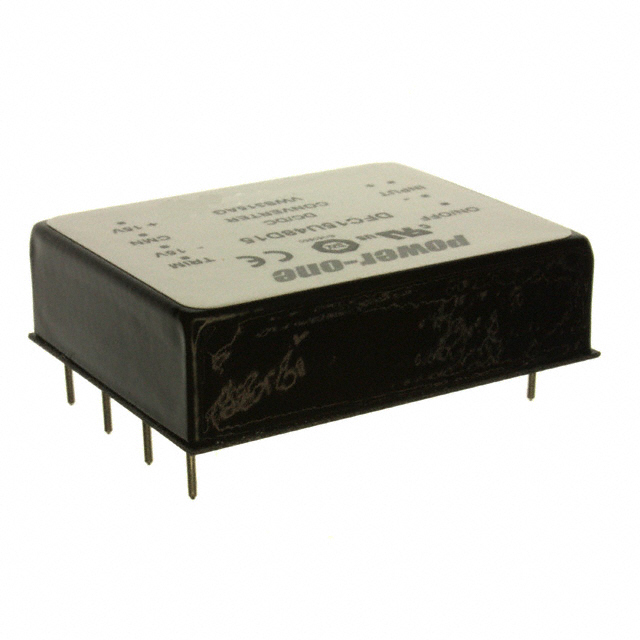

DFC15U48D15
ObsoleteBel Fuse Inc.
DC DC CONVERTER +/-15V 15W
DFC15U48D15
ObsoleteBel Fuse Inc.
DC DC CONVERTER +/-15V 15W
Description
General part information
DFC15U48D15
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 20V - 72V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DFC15U48D15 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 82 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.55 in |
| Size / Dimension Length | 2.02 in |
| Size / Dimension Width | 1.62 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 72 V |
| Voltage - Input (Min) | 20 V |
| Voltage - Isolation | 700 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
