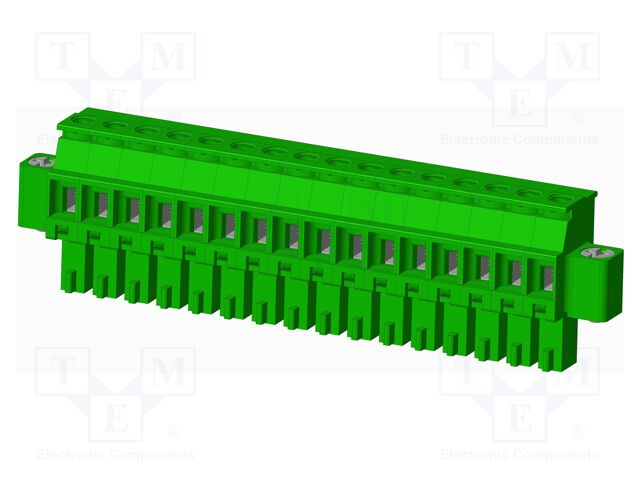

Specification	TS16315C0000G

Color	Green
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	16
Operating Temperature (Max)	115 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Plug Wire Entry Angle	90 °
Positions Per Level	16
Termination Style	Screw - Leaf Spring, Wire Guard
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	16 AWG
Wire Gauge or Range - mm²	1.5 mm²

ts Series

...

Part	Voltage - UL	Features	Current - UL	Color	Number of Positions	Positions Per Level	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Plug Wire Entry Angle	Mounting Type	Contact Mating Finish	Number of Levels	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Pitch	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Type	Wire Strip Length (Min)	Wire Strip Length (Max)	Material Flammability Rating	Insulation Height	Housing Material	Contact Material	Torque - Screw	Screw Size	Wire Gauge or Range - mm²
McGill Microwave Systems TS16515B0000G	300 V	Retention Latches (Non-Wire Side)	15 A	Green	16	16	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	270 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	0.34 mm²	5.08 mm	24 AWG	12 AWG	Female Sockets Plug
McGill Microwave Systems TS21515A0000G	300 V	Retention Latches (Wire Side)	12 A	Green	21	21	Screw - Rising Cage Clamp	-40 °C	115 °C	90 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	1 mm²	5.08 mm	24 AWG	12 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	1.024 in	Thermoplastic Resin	Copper Alloy	0.4 Nm	M3
McGill Microwave Systems TS12515C0000G	300 V	Mating Flange Retention Latches (Wire Side)	15 A	Green	12	12	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	90 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	0.34 mm²	5.08 mm	24 AWG	12 AWG	Female Sockets Plug
McGill Microwave Systems TS10315D0000G	300 V	Mating Flange	8 A	Green	10	10	Screw - Rising Cage Clamp	-40 °C	115 °C	270 °	Free Hanging (In-Line)	Tin	1	1.5 mm²	0.5 mm²	0.15 in	28 AWG	16 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	0.752 in	Thermoplastic Resin	Copper Alloy	0.2 Nm	M2
McGill Microwave Systems TS02A15A0000G	300 V	Retention Latches (Wire Side)	15 A	Green	2	2	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	90 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	0.2 mm²	0.295 in	24 AWG	12 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	1.024 in	Thermoplastic	Phosphor Bronze	0.4 Nm	M3
McGill Microwave Systems TS24715B0000G	300 V	Retention Latches (Non-Wire Side)	15 A	Green	24 pos	24	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	270 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	0.34 mm²	0.197 in	24 AWG	12 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	1.024 in	Thermoplastic	Phosphor Bronze	0.4 Nm	M3
McGill Microwave Systems TS08015C0000G	300 V	Mating Flange Retention Latches (Wire Side)	15 A	Green	8	8	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	90 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	0.34 mm²	0.3 in	24 AWG	12 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	1.024 in	Thermoplastic	Phosphor Bronze	0.4 Nm	M3
McGill Microwave Systems TS24315A0000G	300 V		8 A	Green	24 pos	24	Screw - Rising Cage Clamp	-40 °C	115 °C	90 °	Free Hanging (In-Line)	Tin	1	1.5 mm²	0.5 mm²	0.15 in	28 AWG	16 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	0.751 in	Thermoplastic Resin	Copper Alloy	0.2 Nm	M2
McGill Microwave Systems TS12315B0000G	300 V		8 A	Green	12	12	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	270 °	Free Hanging (In-Line)	Tin	1			0.15 in	28 AWG	16 AWG	Female Sockets Plug									1.5 mm²
McGill Microwave Systems TS06A15C0000G	300 V	Mating Flange Retention Latches (Wire Side)	15 A	Green	6	6	Screw - Leaf Spring Wire Guard	-40 °C	115 °C	90 °	Free Hanging (In-Line)	Tin	1	2.5 mm²	0.2 mm²	0.295 in	24 AWG	12 AWG	Female Sockets Plug	6 mm	7 mm	UL94 V-0	1.024 in	Thermoplastic	Phosphor Bronze	0.4 Nm	M3
