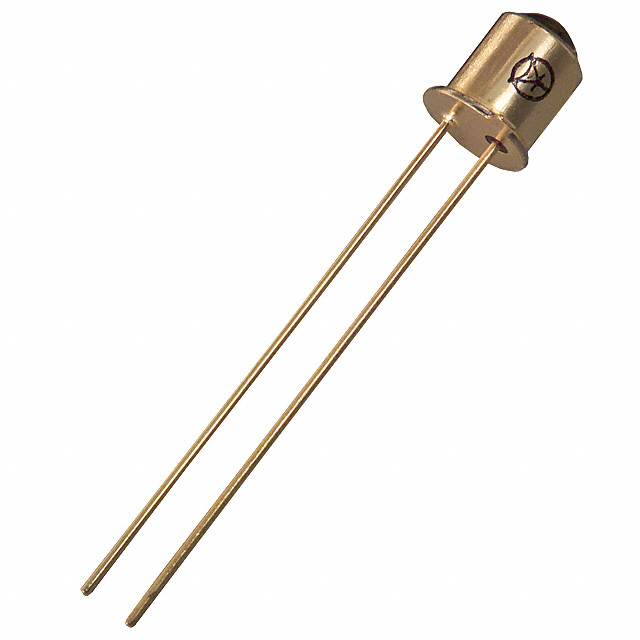

OP236TXV
ActiveTT Electronics/BI
EMITTER IR 890NM 100MA TO-46
OP236TXV
ActiveTT Electronics/BI
EMITTER IR 890NM 100MA TO-46
Description
General part information
OP236TXV
EMITTER IR 890NM 100MA TO-46
Technical Specifications
Parameters and characteristics for this part
| Specification | OP236TXV |
|---|---|
| Current - DC Forward (If) (Max) | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Type | Infrared (IR) |
| Viewing Angle | 18 ° |
| Voltage - Forward (Vf) (Typ) | 1.55 V |
| Wavelength | 890 nm |
