90B02ST

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	90B02ST	90B02 Series

Actuator Level	Flush, Recessed	Flush, Recessed
Actuator Type	Slide (Standard)	Slide (Standard)
Body Material	Thermoplastic	Thermoplastic
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	25 mA	25 mA
Electrical Life	2000 Steps	2000 Steps
Features	Tape Seal	Position Identification Line, Tape Seal
Length	0.27 in	0.27 in
Length	6.86 mm	6.86 mm
Mechanical Life	2000 Cycles	2000 Cycles
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	True	True

ASM,SP/ST 2SLD B SL,LF ROHS COMPLIANT: YES

Part	Actuator Level	Features	Contact Material	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Contact Finish	Body Material	Electrical Life	Voltage Rating	Washable	Circuit	Actuator Type	Termination Style	Mechanical Life	Length	Length	Current Rating (Amps)	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]
Grayhill Inc. 90B02SLT	Flush, Recessed	Position Identification Line, Tape Seal	Copper Alloy	0.1 in	Full	2.54 mm	Through Hole	Gold	Thermoplastic	2000 Steps	24 VDC		SPST	Slide (Standard)	PC Pin	2000 Cycles	0.27 in	6.86 mm	25 mA	2	85 °C	-40 °C
Grayhill Inc. 90B02ST	Flush, Recessed	Tape Seal	Copper Alloy	0.1 in	Full	2.54 mm	Through Hole	Gold	Thermoplastic	2000 Steps	24 VDC		SPST	Slide (Standard)	PC Pin	2000 Cycles	0.27 in	6.86 mm	25 mA	2	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

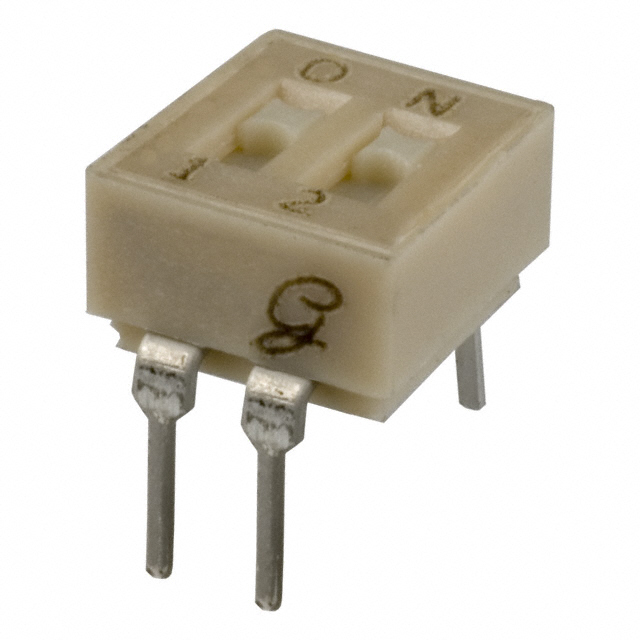

Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
