CTW-403614-206SE
ActiveSame Sky (Formerly CUI Devices)

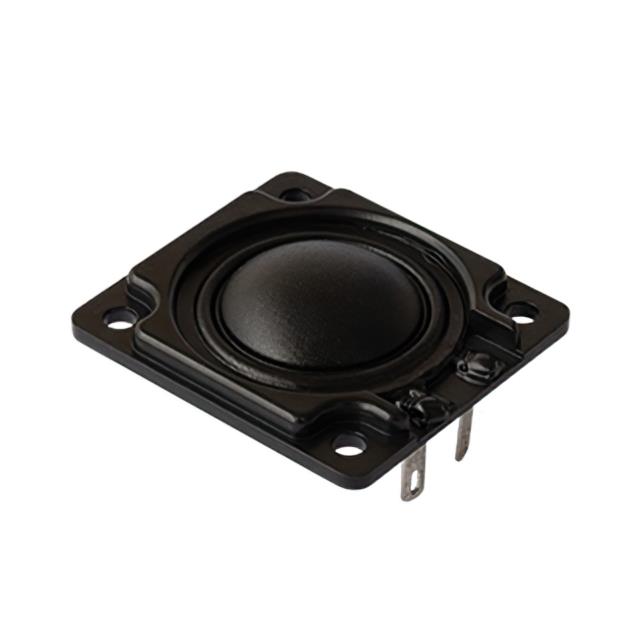

TWEETER, 40MM, POLYESTER, 20W, 6
CTW-403614-206SE
ActiveSame Sky (Formerly CUI Devices)
TWEETER, 40MM, POLYESTER, 20W, 6
Description
General part information
CTW-403614-206SE
6 Ohms General Purpose Speaker 20 W 1.2 kHz ~ 20 kHz Top Round, Rectangular Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | CTW-403614-206SE |
|---|---|
| Distortion Rating (Max) | 10 % |
| Distortion Rating Power | 1 W |
| Efficiency - dBA | 84 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1500 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 1.2 kHz |
| Height - Seated (Max) | 0.551 in |
| Impedance | 6 Ohms |
| Material - Cone | Polyester |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | Top |
| Power - Max | 25 W |
| Power - Rated | 20 VA |
| Shape | Rectangular Frame, Round |
| Size / Dimension Length | 1.575 in |
| Size / Dimension Width | 1.437 in |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | General Purpose |
