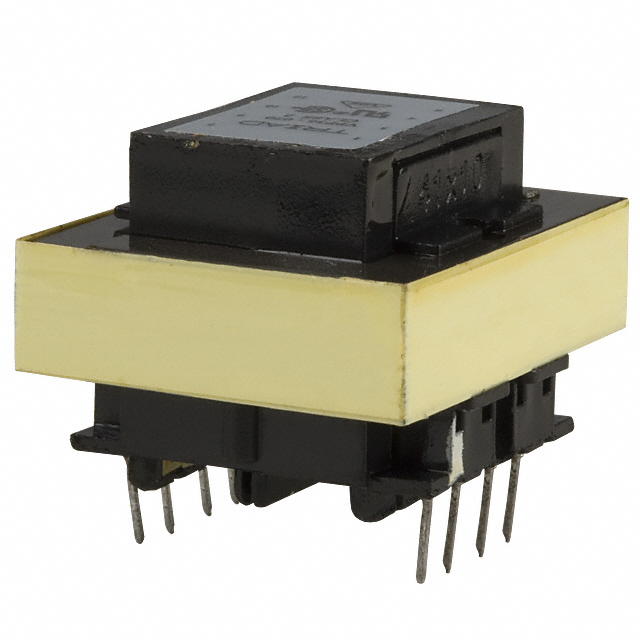

VPP12-200-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 2.5VA TH
VPP12-200-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 2.5VA TH
Description
General part information
VPP12-200-B
PWR XFMR LAMINATED 2.5VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | VPP12-200-B |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 400 mA |
| Current - Output (Max) Series | 200 mA |
| Height - Seated (Max) | 28.58 mm |
| Mounting Type | Through Hole |
| Power - Max | 2.5 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 41.28 mm |
| Size / Dimension Width | 33.32 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 6.3 V |
| Voltage - Secondary (Full Load) (Series) | 12.6 V |
| Weight | 0.25 lbs |
