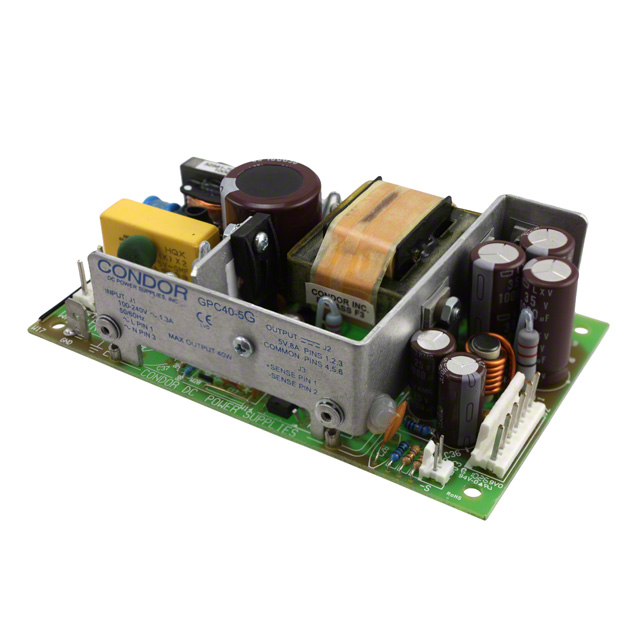

GPC40-5G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 5V 40W
GPC40-5G
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 5V 40W
Description
General part information
GPC40-5G
Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | GPC40-5G |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, TUV, CE |
| Current - Output 1 | 8 A |
| Efficiency | 70 % |
| Features | Universal Input, Adjustable Output, Remote Sense |
| Minimum Load Required | Yes |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 40 W, 50 W |
| Size / Dimension Height | 1.28 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 5 V |
