S02-18-R

Unknown

TE Connectivity Aerospace, Defense and Marine

SLDR SLEEVE WIRE-WIRE 0.17"/0.2"

Search across all available documentation for this part.

Unknown

TE Connectivity Aerospace, Defense and Marine

SLDR SLEEVE WIRE-WIRE 0.17"/0.2"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1300	$ 2.26

General part information

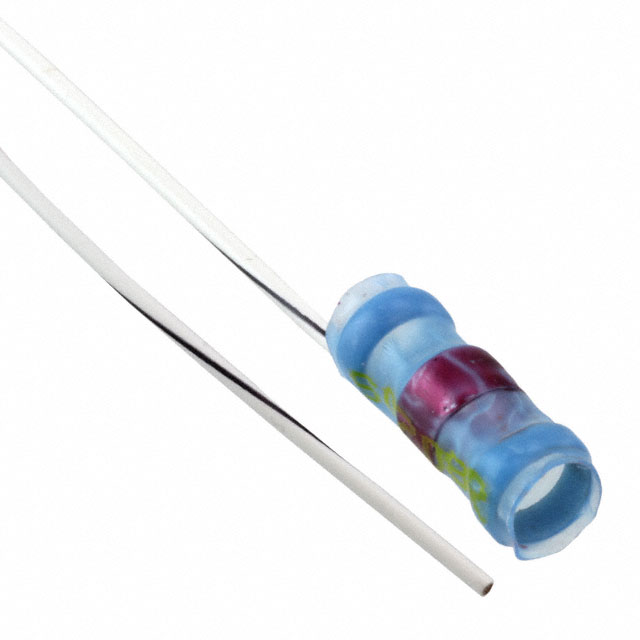

Wire to Wire Solder Sleeve Transparent - Blue 0.170" (4.32mm), 0.200" (5.08mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	S02-18-R	S02-18 Series

Color	Transparent - Blue	Transparent - Blue
Diameter	4.32 mm, 5.08 mm	4.32 - 5.08 mm
Diameter	0.17 in, 0.2 in	0.17 - 0.2 in
Features	Immersion Resistant, Pre-Installed Lead Wire, Environment Resistant	Immersion Resistant, Pre-Installed Lead Wire, Environment Resistant
Length	16.51 mm	16.51 mm
Length	0.65 "	0.65 "
Type	Wire to Wire	Wire to Wire

SLDR SLEEVE WIRE-WIRE 0.17"/0.2"

Part	Diameter	Diameter	Type	Features	Color	Length	Length
TE Connectivity Aerospace, Defense and Marine S02-18-R	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Environment Resistant, Immersion Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S02-18-R-3	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Immersion Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S02-18-R-95CS1092	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Environment Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S02-18-R-90	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Environment Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S02-18-R-6	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Environment Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S02-18-R-92	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Environment Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
TE Connectivity Aerospace, Defense and Marine S02-18-RCS453	4.32 mm, 5.08 mm	0.17 in, 0.2 in	Wire to Wire	Environment Resistant, Pre-Installed Lead Wire	Transparent - Blue	16.51 mm	0.65 "
