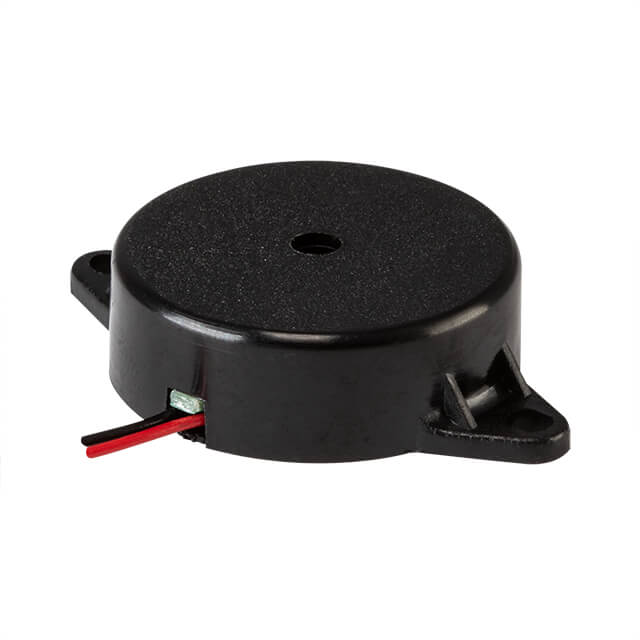

CPT-3010-95-L200
ActiveSame Sky (Formerly CUI Devices)
30MM, PIEZO, 30V
CPT-3010-95-L200
ActiveSame Sky (Formerly CUI Devices)
30MM, PIEZO, 30V
Description
General part information
CPT-3010-95-L200
Buzzers Transducer, Externally Driven Piezo 12 V 20mA 3.3kHz 105dB @ 12V, 10cm Panel Mount, Flange Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CPT-3010-95-L200 |
|---|---|
| Current - Supply | 20 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3.3 kHz |
| Height - Seated (Max) | 0.413 in |
| Input Type | DC |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.181 in |
| Sound Pressure Level (SPL) | 105 dB |
| Technology | Piezo |
| Termination | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range | 30 V |
