SP570308-1
ActiveDB Unlimited

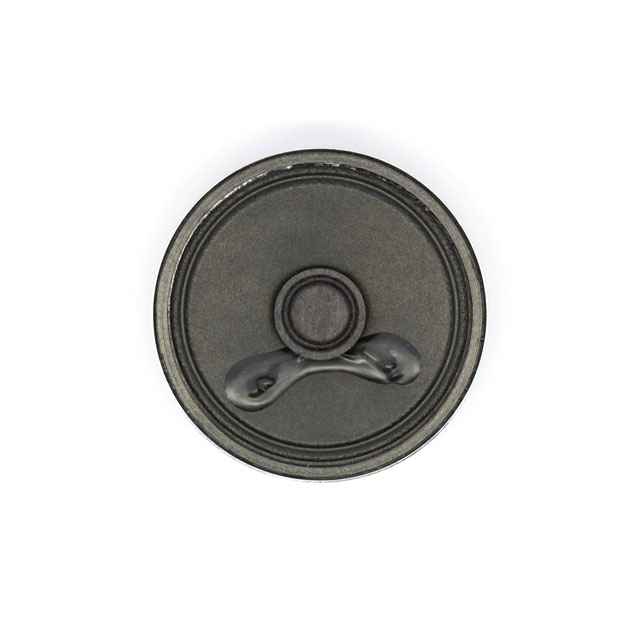

SPEAKR 8OHM 250MW TOP PORT 105DB
SP570308-1
ActiveDB Unlimited
SPEAKR 8OHM 250MW TOP PORT 105DB
Description
General part information
SP570308-1
8 Ohms General Purpose Speaker 250 mW 330 Hz ~ 4 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | SP570308-1 |
|---|---|
| Efficiency - dBA | 105 dBA |
| Efficiency - Testing (Length) | 100 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 330 Hz |
| Frequency Range (Max) | 4 kHz |
| Frequency Range (Min) | 330 Hz |
| Height - Seated (Max) | 0.768 in |
| Impedance | 8 Ohm |
| Material - Cone | Paper |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 0.5 W |
| Power - Rated | 0.25 W |
| Shape | Round |
| Size / Dimension Diameter | 2.244 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
