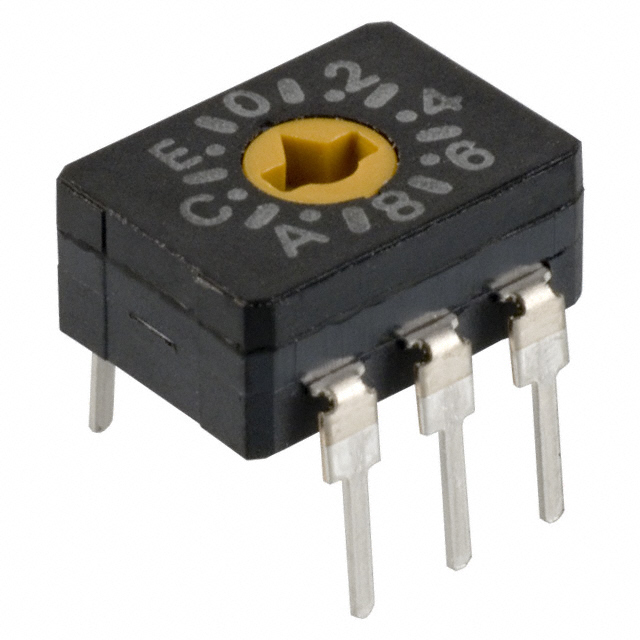

A6C-16R(N)

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.1A 30V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.1A 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6C-16R(N)	A6C Series

Actuator Level	Flush, Recessed	Flush, Recessed
Actuator Type	Rotary for Tool	Rotary for Tool
Circuit	Hexadecimal	Hexadecimal
Current Rating (Amps)	100 mA	100 mA
Electrical Life	2000 Steps	2000 Steps
Features	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Height Above Board	0.177 in	0.177 - 0.358 in
Height Above Board	4.5 mm	4.5 - 9.1 mm
Length	0.354 in	0.354 in
Length	9 mm	9 mm
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	16	16
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	30 VDC	30 VDC
Washable	False	False

SWITCH ROTARY DIP HEX 0.1A 30V

Part	Voltage Rating	Length	Length	Electrical Life	Circuit	Number of Positions	Termination Style	Actuator Type	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Washable	Actuator Level	Mechanical Life	Pitch [x]	Pitch	Pitch [x]	Height Above Board	Height Above Board	Mounting Type
Omron Electronics Inc-EMC Div A6C-16R(N)	30 VDC	0.354 in	9 mm	2000 Steps	Hexadecimal	16	PC Pin	Rotary for Tool	IP64 - Dust Tight, Water Resistant	100 mA	-20 C	70 °C		Flush, Recessed	10000 Steps	0.1 in	Full	2.54 mm	0.177 in	4.5 mm	Through Hole
Omron Electronics Inc-EMC Div A6CV-16R	30 VDC	0.354 in	9 mm	2000 Steps	Hexadecimal	16	PC Pin	Rotary for Tool	IP64 - Dust Tight, Water Resistant	100 mA	-20 C	70 °C		Flush, Recessed	10000 Steps	0.1 in	Full	2.54 mm	0.358 "	9.1 mm	Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 100mA 30VDC
