Description
General part information
V7C00008

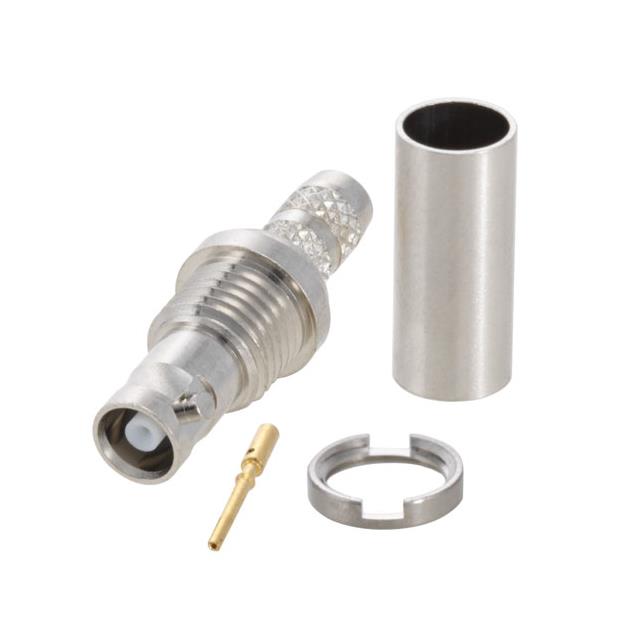

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | V7C00008 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 1855A |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Nickel, Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
