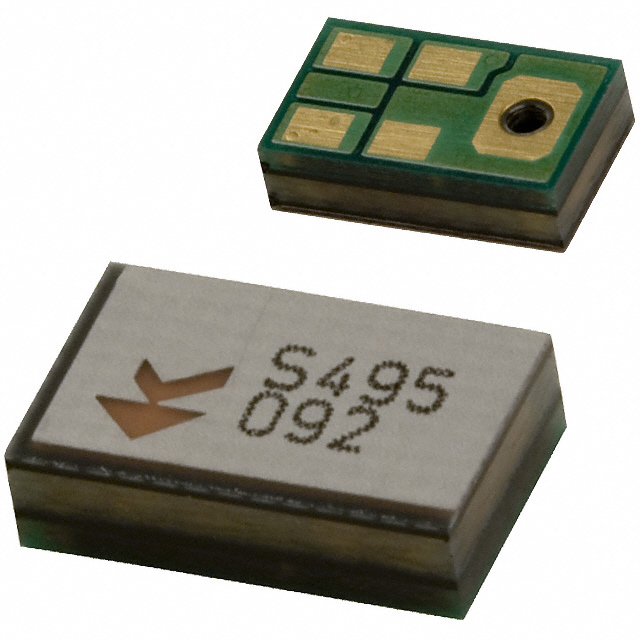

SP0103BE3-5
ObsoleteKnowles Syfer
MIC SISONIC SMD 1.5-5.5V 0-HGHT
SP0103BE3-5
ObsoleteKnowles Syfer
MIC SISONIC SMD 1.5-5.5V 0-HGHT
Description
General part information
SP0103BE3-5
100 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 5.5 V Omnidirectional (-22dB ±4dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SP0103BE3-5 |
|---|---|
| Current - Supply | 350 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 100 Hz |
| Height (Max) | 0.073 in |
| Impedance | 100 Ohm |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 59 dB |
| Sensitivity (Nominal) | -22 dB |
| Sensitivity Tolerance | 4 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.242 in |
| Size / Dimension Width | 0.148 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage Range (Max) | 5.5 VDC |
| Voltage Range (Min) | 1.5 V |
