Description
General part information

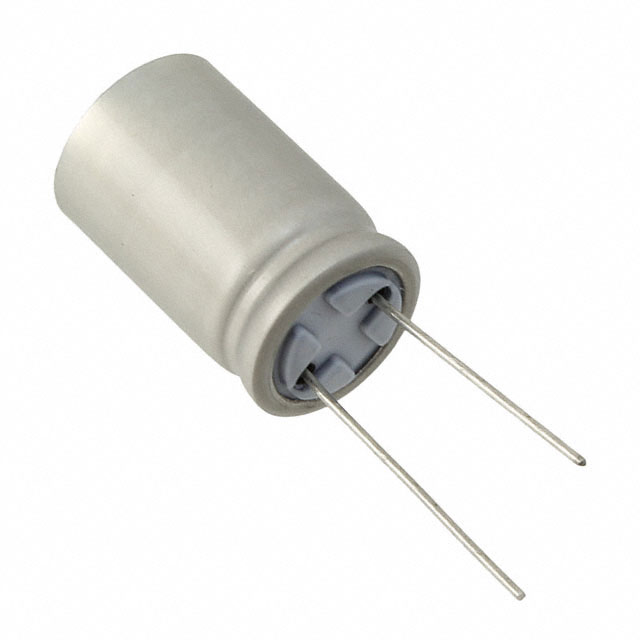

UBX1J471MHL1TN
470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UBX1J471MHL1TN |
|---|---|
| Applications | Automotive |
| Capacitance | 470 µF |
| Height - Seated (Max) | 1.043 in |
| Lead Spacing | 0.295 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.28 A, 640 mA |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
