Description
General part information

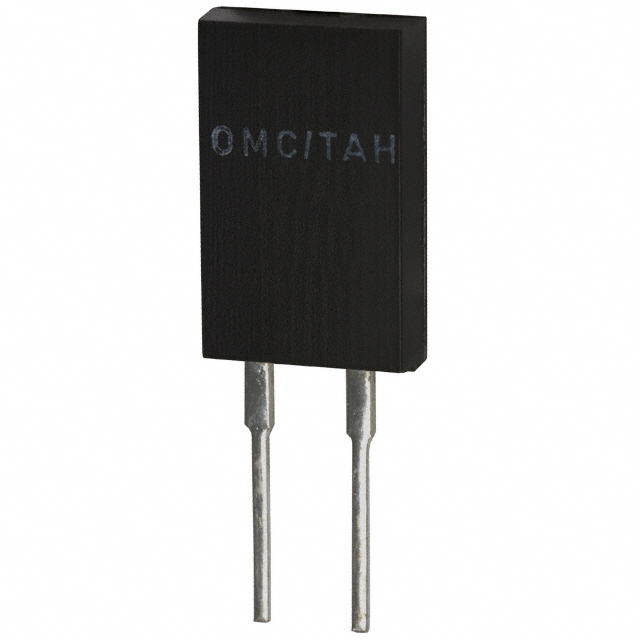

TAH20P39R0JE
39 Ohms ±5% 20W Through Hole Resistor TO-220-2 Moisture Resistant, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TAH20P39R0JE |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant, Pulse Withstanding |
| Height - Seated (Max) | 16.51 mm |
| Number of Terminations | 2 |
| Package / Case | TO-220-2 |
| Package Name | TO-220 |
| Power (Watts) | 20 W |
| Resistance | 39 Ohm |
| Size / Dimension Length | 0.41 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
