Description
General part information

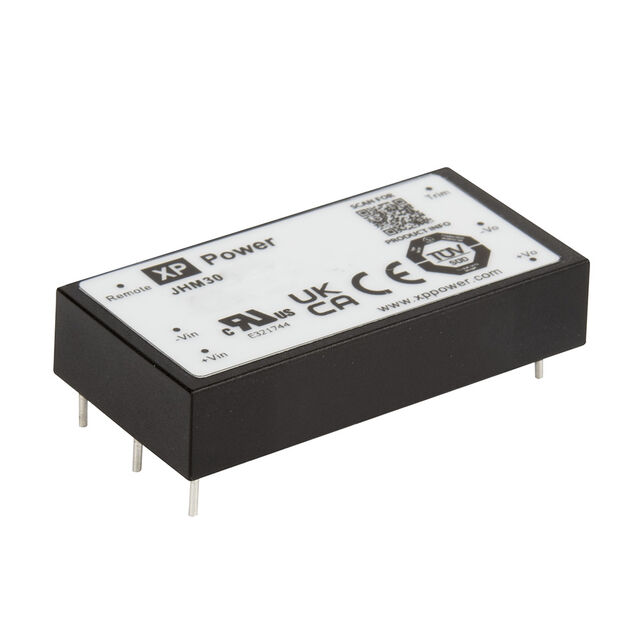

JHM3024S15
Isolated Module DC DC Converter 1 Output 15V 2A 18V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | JHM3024S15 |
|---|---|
| Applications | Medical |
| Approval Agency | UKCA, TUV, CE, UL, CB |
| Current - Output (Max) | 2 A |
| Efficiency | 89 % |
| Features | Adjustable Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Standard Number | 60601-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 15 V |
