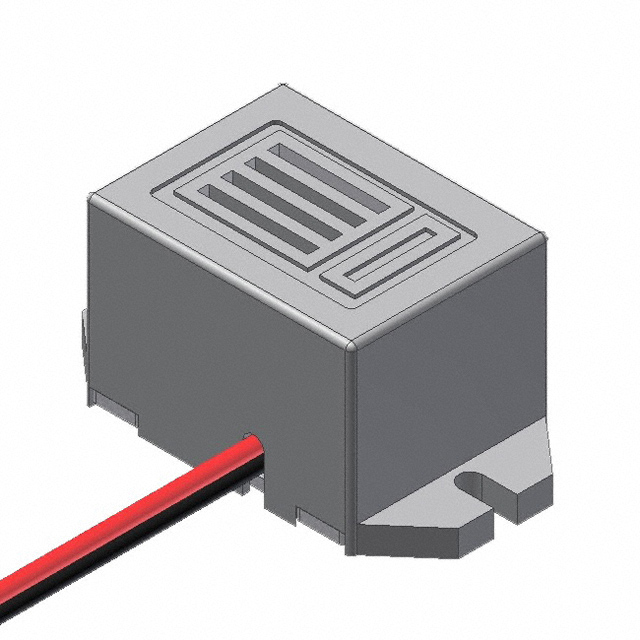

AI-2304-TF-LW120-R
ObsoletePUI Audio, Inc.
BUZZER MAGN 24V 32X17 FLANG
AI-2304-TF-LW120-R
ObsoletePUI Audio, Inc.
BUZZER MAGN 24V 32X17 FLANG
Description
General part information
AI-2304-TF-LW120-R
Buzzers Indicator, Internally Driven Electromechanical/Magnetic 24 V 24mA 400Hz 86dB @ 24V, 10cm Panel Mount, Flange Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | AI-2304-TF-LW120-R |
|---|---|
| Current - Supply | 24 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 400 Hz |
| Height - Seated (Max) | 0.632 in |
| Input Type | DC |
| Mounting Type | Panel Mount, Flange |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 0.669 in |
| Sound Pressure Level (SPL) | 86 dB |
| Technology | Electromechanical, Magnetic |
| Termination | Wire Leads |
| Voltage - Rated | 24 VAC |
| Voltage Range (Max) | 28 V |
| Voltage Range (Min) | 20 VDC |
