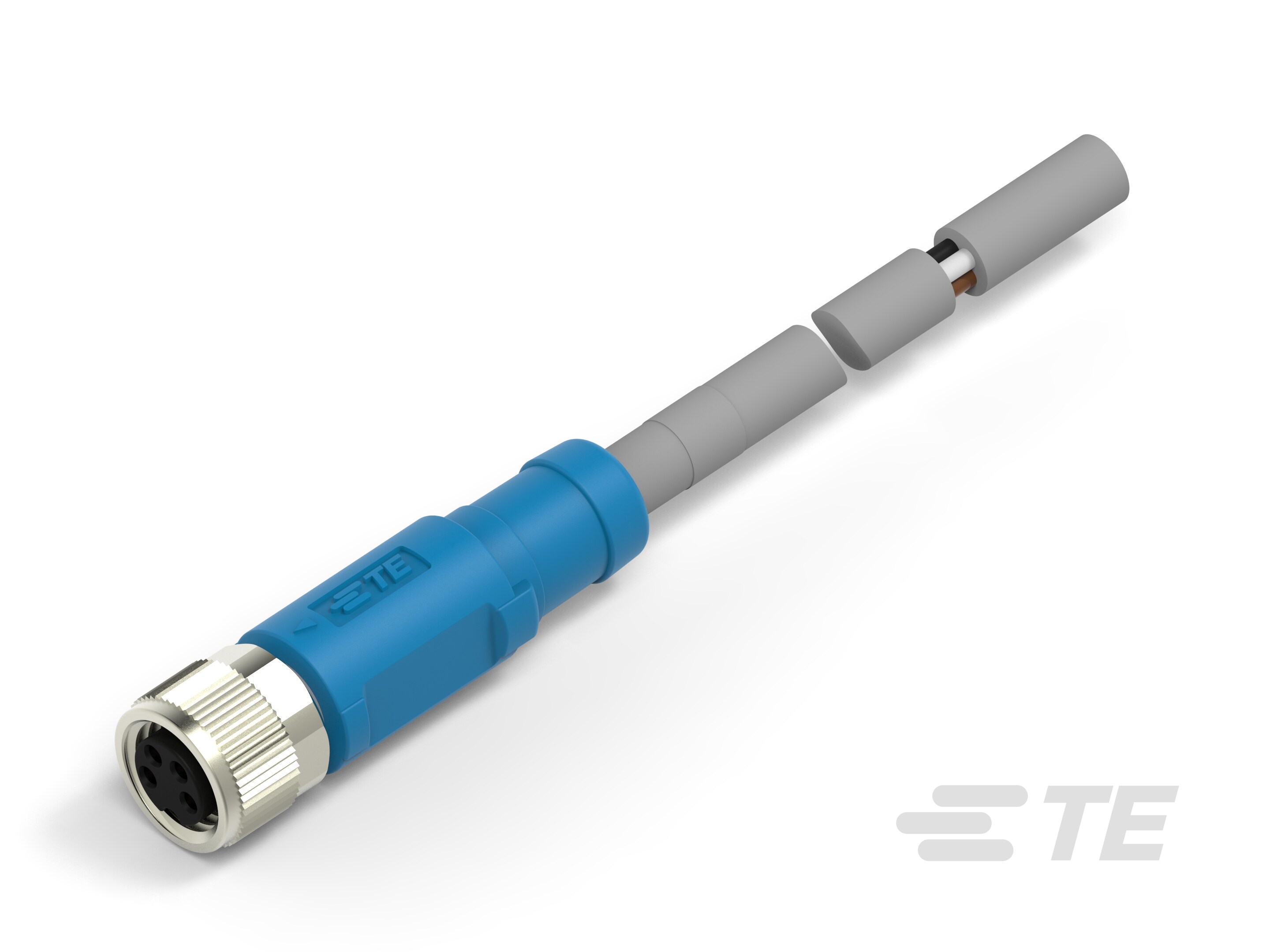

Specification	1SET311479R0000

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Gray
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

M8 Connector Series

Part	Mounting Type	Voltage Rating	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Termination	Color	Connector Type	Orientation	Shell Size - Insert	Current Rating	Contact Finish - Mating	Number of Positions	Features	Ingress Protection Description	Ingress Protection IP Rating	Length	1st Connector Mounting Type	1st Connector Orientation	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions	Usage	1st Connector Number of Positions Loaded	2nd Connector Type	1st Connector Type	Cable Type	1st Connector Shell Size - Insert	For Use With/Related Products	Material	Accessory Type	2nd Connector Mounting Type	Cable Material	2nd Connector Orientation	2nd Connector Gender	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert (Code)	Primary Material	Shell Material	Insert Material	Contact Material
TE Connectivity AMP Connectors 234235-E	Surface Mount	250 V	Unshielded	85 °C	-25 °C	UL94 V-0	Solder Eyelet(s)	Black	Insert Male Pins	A	M8-4	4 A	Gold	4	Board Guide Insert Only Requires Shell	Dust Tight Water Resistant Waterproof	IP65 IP67
TE Connectivity AMP Connectors 1SET310132R0000			Unshielded					Multiple								Dust Tight Waterproof	IP67	0.66 ft	Panel Mount	A	Female Sockets	Standard	4 positions	Industrial Environments	All	Wire Leads	Plug	Individual	M8
TE Connectivity AMP Connectors 284067-E											M8																			M8 Connector	Metal	Coupling Nut
TE Connectivity AMP Connectors 1SET312563R0000			Unshielded					Gray								Dust Tight Waterproof	IP67	3.28 ft	Free Hanging (In-Line)	A	Male Pins	Standard	4 positions	Industrial Environments	All	Plug Right Angle	Receptacle	Round	M8				Free Hanging (In-Line)	Polyurethane (PUR)	A	Female Sockets	4	All	M8
TE Connectivity AMP Connectors 474231-E	Through Hole	250 V	Unshielded	85 °C	-25 °C	UL94 V-0	Solder	Black	Female Sockets Insert	A	M8-4	4 A	Gold	4	Board Guide Insert Only Requires Shell	Dust Tight Waterproof	IP67																							Plastic	Liquid Crystal Polymer (LCP)	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 284074-E								Silver			M8																			Circular Connectors	Copper Alloy	Shell
TE Connectivity AMP Connectors 515814-E	Surface Mount	30 V	Unshielded	85 °C	-25 °C	UL94 V-0	Solder	Black	Female Sockets Insert	A	M8-6	2 A	Gold	6	Board Guide Insert Only Requires Shell	Dust Tight Waterproof	IP67																									LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 225430-E	Through Hole	30 V	Unshielded	85 °C	-25 °C	UL94 V-0	Solder	Black	Insert Male Pins	A	M8-8	2 A	Gold	8	Insert Only Requires Shell	Dust Tight Waterproof	IP67																									LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 284409-E																														Circular Connectors	Copper Alloy	Nut
TE Connectivity AMP Connectors 224151-E	Surface Mount		Unshielded	125 °C	-55 °C	UL94 V-0	Solder Eyelet(s)	Black	Female Sockets Insert	A	M8-4	4.8 A	Gold	4	Board Guide Insert Only Requires Shell	Dust Tight Waterproof	IP67
