CSO-NM-1200-NM
ActiveTE Connectivity AMP Connectors

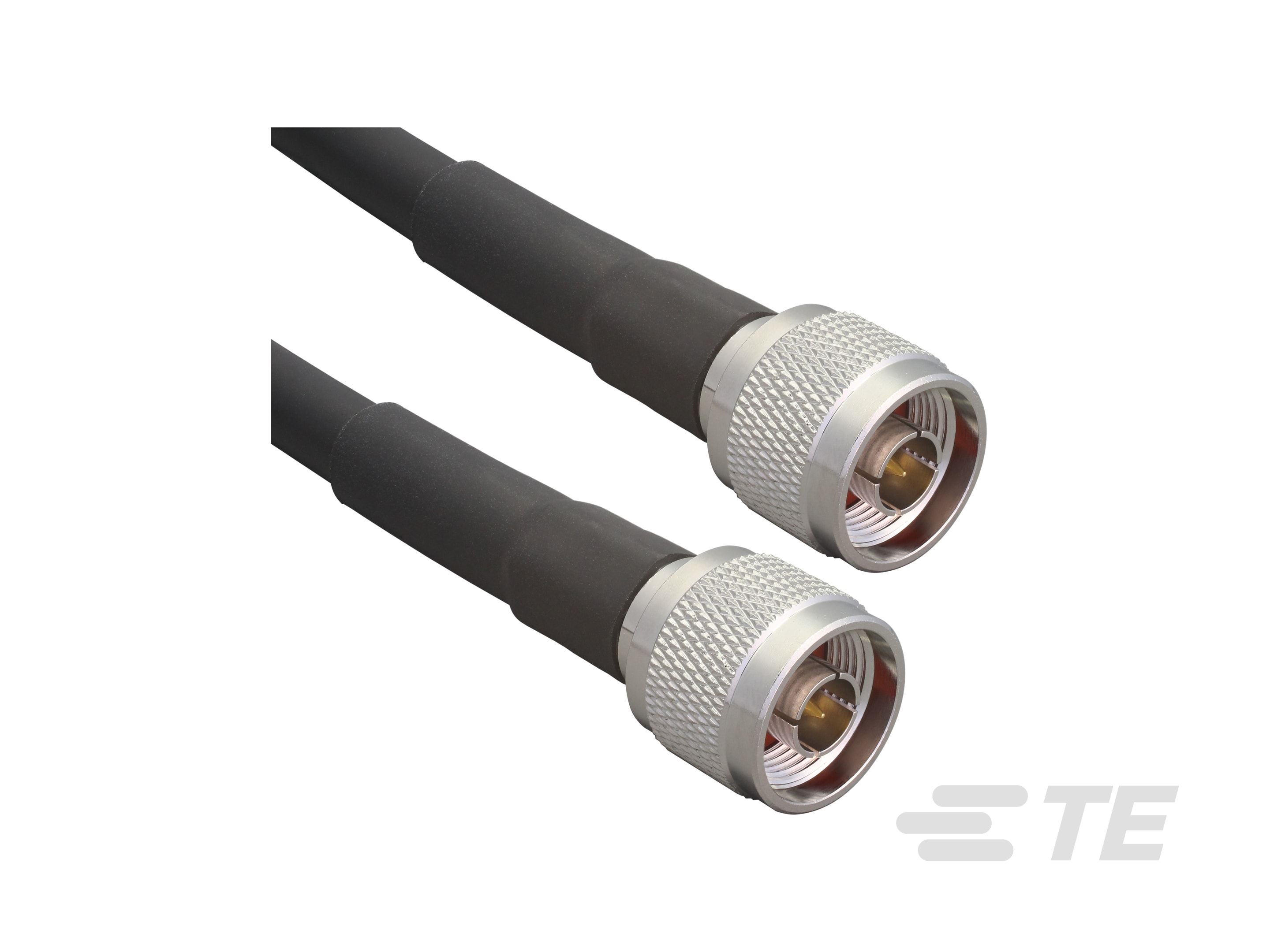

N TYPE TO N TYPE 1200MM LMR400
CSO-NM-1200-NM
ActiveTE Connectivity AMP Connectors
N TYPE TO N TYPE 1200MM LMR400
Description
General part information
CSO-NM-1200-NM
N Series Cable Assembly, 1.2 m [3.937 ft], 5.8 GHz, 50 ohm, N TYPE Plug End A, N TYPE Plug End B, -40 – 85 °C [-40 – 185 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | CSO-NM-1200-NM |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Frequency - Max | 5.8 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
