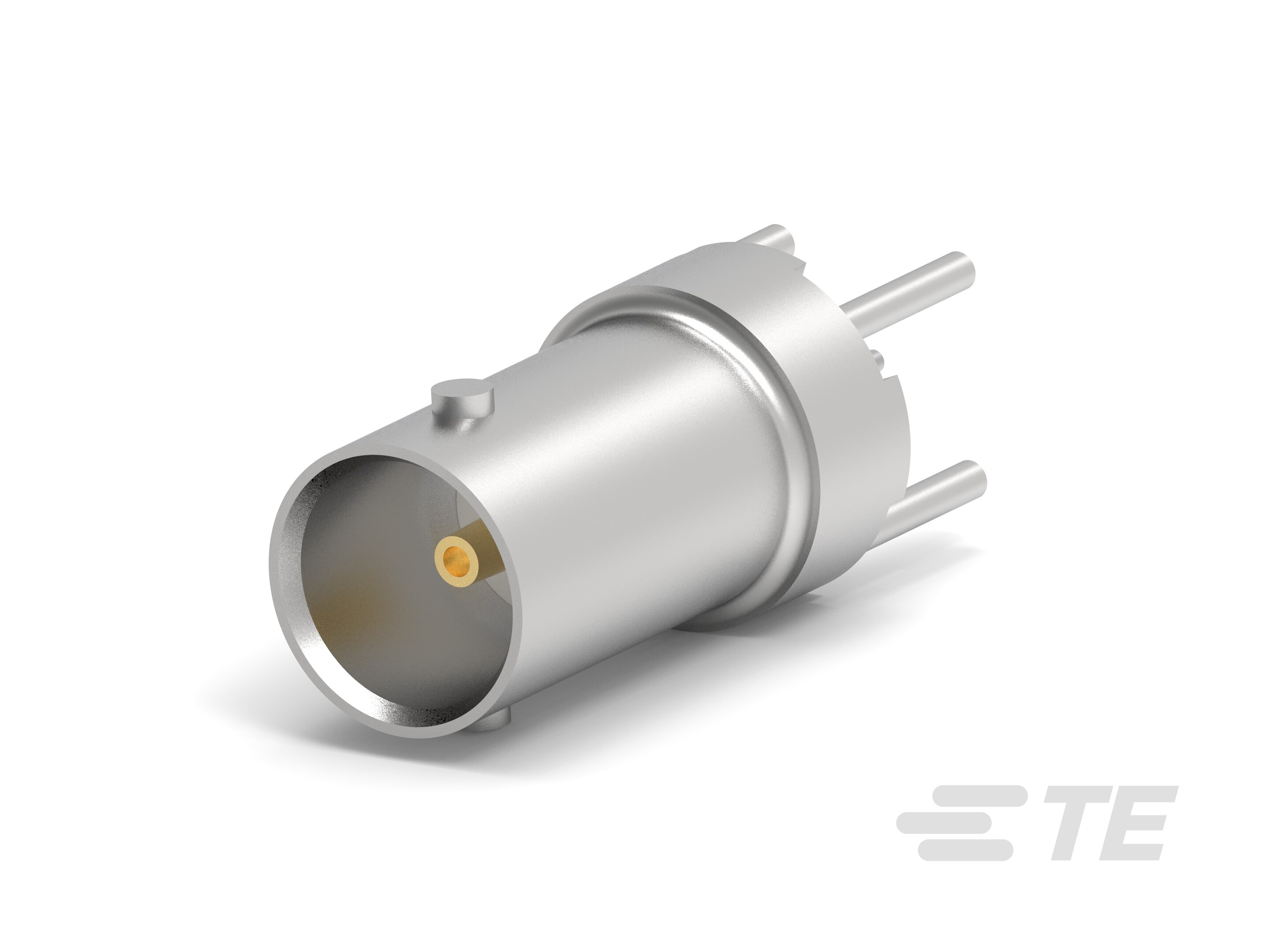

JACK, VERT,PCB,75 OHM,BNC-6274359-1

6274359-1

Active
TE Connectivity AMP Connectors

CONN BNC 0HZ TO 4GHZ 75OHM SOLDER ST THRU-HOLE RCP GOLD TRAY

Find alt
JACK, VERT,PCB,75 OHM,BNC-6274359-1

6274359-1

Active
TE Connectivity AMP Connectors

CONN BNC 0HZ TO 4GHZ 75OHM SOLDER ST THRU-HOLE RCP GOLD TRAY

Find alt

Description

General part information

6274359-1

BNC Connector, Jack, 75 ohm, Bayonet, 4 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, Board Mount, -55 – 85 °C [-67 – 185 °F], Zinc, Bright

Technical Specifications

Parameters and characteristics for this part

Specification6274359-1
Center Contact MaterialBeryllium Copper
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Fastening TypeBayonet Lock
Frequency - Max4 GHz
Housing ColorSilver
Impedance75 Ohm
Mounting TypeThrough Hole
Number of Ports1
Shield TerminationSolder
