B78108E1101M000
LTBEPCOS - TDK Electronics
FIXED IND 100NH 7.3A 15 MOHM TH
B78108E1101M000
LTBEPCOS - TDK Electronics
FIXED IND 100NH 7.3A 15 MOHM TH
Description
General part information
B78108E1101M000

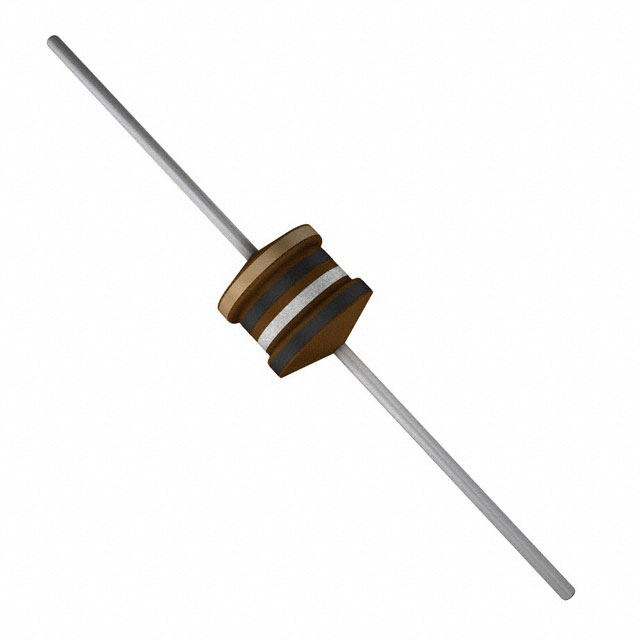

100 nH Unshielded Drum Core, Wirewound Inductor 7.3 A 15mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108E1101M000 |
|---|---|
| Current - Saturation (Isat) | 17 A |
| Current Rating | 7.3 A |
| DC Resistance (DCR) (Max) | 15 mOhm |
| Frequency - Self Resonant | 700 MHz |
| Inductance | 100 nH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 50 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.374 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
