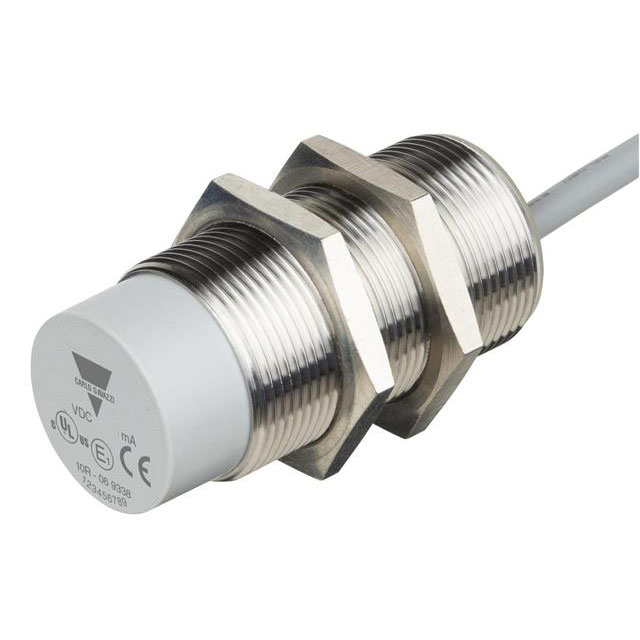

ICS30L50N22NCB2E1
ActiveCarlo Gavazzi Inc.
SENSOR: INDUCTIVE; OUT: NPN / NC; 22MM; 8÷60VDC; M30; 2M; IP67; 200MA
ICS30L50N22NCB2E1
ActiveCarlo Gavazzi Inc.
SENSOR: INDUCTIVE; OUT: NPN / NC; 22MM; 8÷60VDC; M30; 2M; IP67; 200MA
Description
General part information
ICS30L50N22NCB2E1
SENSOR: INDUCTIVE; OUT: NPN / NC; 22MM; 8÷60VDC; M30; 2M; IP67; 200MA
Technical Specifications
Parameters and characteristics for this part
| Specification | ICS30L50N22NCB2E1 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP67, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 4-Wire, NPN-NC |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 0.866 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 60 V |
| Voltage - Supply (Minimum) | 8 V |
