Description
General part information

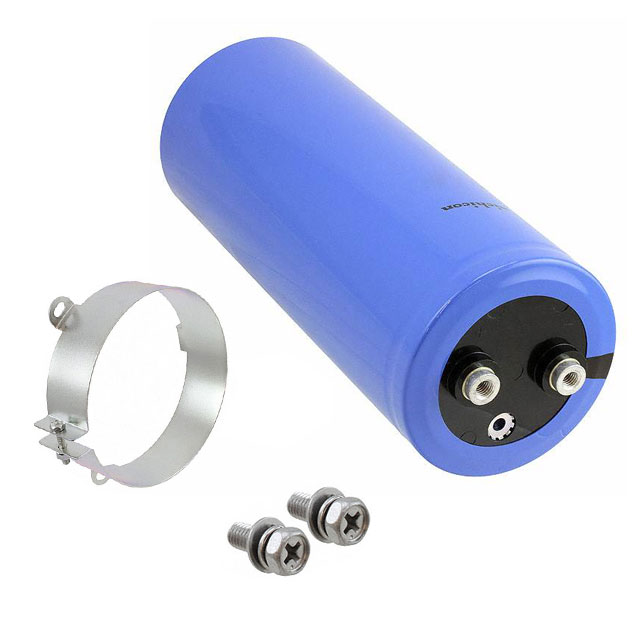

LNR1C155MSE
1.5 F 16 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNR1C155MSE |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 F |
| Height - Seated (Max) | 254 mm |
| Lead Spacing | 1.634 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 45.655 A, 39.7 A |
| Size / Dimension Diameter | 3.937 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
