LMXN1915M680CTAS
ObsoleteKYOCERA AVX
FIXED IND 68UH 130 MOHM SMD
LMXN1915M680CTAS
ObsoleteKYOCERA AVX
FIXED IND 68UH 130 MOHM SMD
Description
General part information
LMXN1915M680CTAS

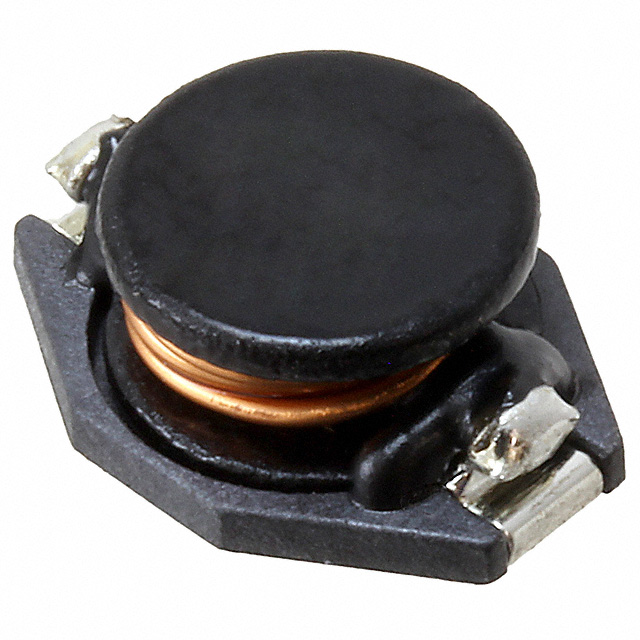

68 µH Unshielded Drum Core, Wirewound Inductor 130mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMXN1915M680CTAS |
|---|---|
| Current - Saturation (Isat) | 3.5 A |
| DC Resistance (DCR) (Max) | 130 mOhm |
| Height - Seated (Max) | 0.28 in |
| Inductance | 68 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.73 in |
| Size / Dimension Width | 0.6 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
